24/12/2024

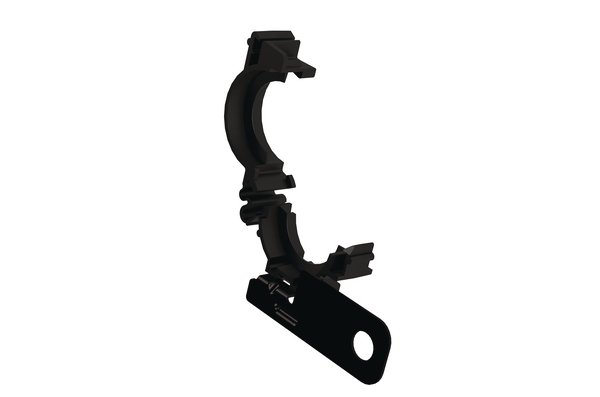

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 600pcs.
Art.-No. 151-02633 | CDC22R40.5M8-PA66-BK |  Details

Internal clamp rib prevents movement or rattling.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6 (PA66)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CDC22R40.5M8-PA66-BK
    Pack Cont. 600pcs.
    Package Content packed in carton
    Type CDC22R40.5M8
    Attach to Ø 22
    Bundle Diameter max (metric) 22.0mm
    Bundle ∅ 22.0mm
    Diameter (D) 23.7mm
    Height (H) 80.3mm
    Length (L) 93.0mm
    Offset Length 40.5mm
    Stud ∅ M8"
    Stud ∅ M8
    Width (W) 22.0mm
    for Hole ∅ (FH) 8.6 mm
    ∅ (D2) 31.2mm
    ∅ D 0.93"
    ∅ D2 1.23"
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
