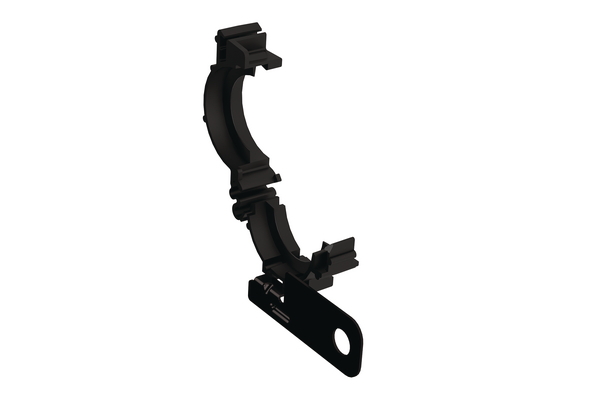

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 500pcs.
Art.-No. 151-02646 | CDC25R40.5M8-PA66HIRHS-BK |  Details

Internal rib prevents tubing movement or rattling.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CDC25R40.5M8-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in carton
    Type CDC25R40.5M8
    Attach to Ø 25
    Bundle Diameter max (metric) 25.0mm
    Bundle ∅ 25.0mm
    Diameter (D) 27.0mm
    Height (H) 87.1mm
    Length (L) 97.3mm
    Offset Length 40.5mm
    Stud ∅ M8"
    Stud ∅ M8
    Width (W) 22mm
    for Hole ∅ (FH) 8.8 mm
    ∅ (D2) 35.4mm
    ∅ D 1.06"
    ∅ D2 1.39"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026715223
    Packaging 3 - Height (m) 0.352m
    Packaging 3 - Length (m) 0.572m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.349m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
