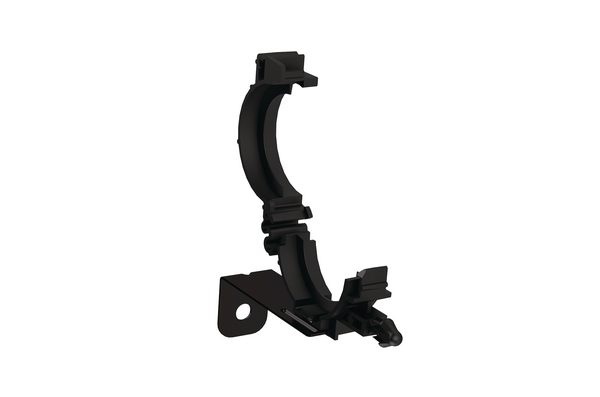

Corrugated tube clip for screw fixation, black, 350pcs.
Art.-No. 133-04364 | CDC30AHB90OS50M6-PA66HIRHS-BK |  Details

Self-affixing offset arrowhead configuration.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib, lockable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M6 Screw
    PART DESCRIPTION CDC30AHB90OS50M6-PA66HIRHS-BK
    Pack Cont. 350pcs.
    Package Content packed in carton
    Type CDC30AHB90OS50M6
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 30.0mm
    Diameter (D) 32.8mm
    Height (H) 109.1mm
    Length (L) 95.5mm
    Offset Length 50mm
    Stud ∅ M6"
    Stud ∅ M6
    Width (W) 23mm
    for Hole ∅ (FH) 6.5 mm
    ∅ (D2) 40.8mm
    ∅ D 1.29"
    ∅ D2 1.6"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
