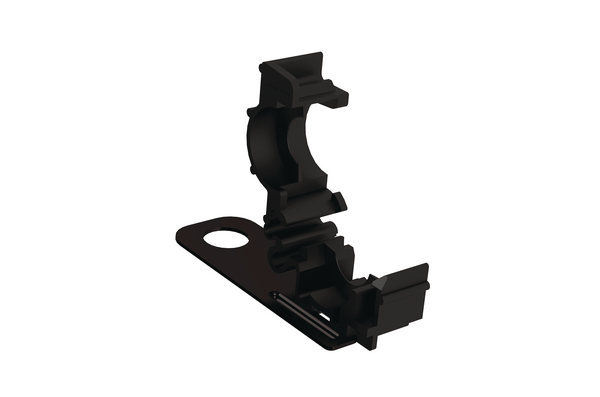

Corrugated tube clip for screw fixation/with pipe/tube holder, nom∅30.0mm, black, 25pcs.
Art.-No. 151-02983 | CDC30S40.5M6-PA66HIRHS-BK |  Details

Conduit clamp is releasable to allow for maintenance.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CDC30S40.5M6-PA66HIRHS-BK
    Pack Cont. 25pcs.
    Package Content packed in carton
    Type CDC30S40.5M6
    Variant Clamps
    Attach to Ø 30
    Bundle Diameter max (metric) 30.0mm
    Bundle ∅ 30.0mm
    Diameter (D) 32.8mm
    Height (H) 86.3mm
    Inner Diameter D (Imperial) 1.61"
    Inside Ø (ID) 40.8mm
    Length (L) 79.9mm
    Nominal ∅ 1.25"
    Nominal ∅ 30.0mm
    Outside ∅ (OD2) 1.29"
    Outside ∅ (OD2) 32.8mm
    Width (W) 23mm
    for Hole ∅ (FH) 6.5 mm
    ∅ (D2) 40.8mm
    ∅ D 1.29"
    ∅ D2 1.61"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026715292
    Packaging 3 - Height (m) 0.365125m
    Packaging 3 - Length (m) 0.79375m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.1123m³
    Packaging 3 - Width (m) 0.38735m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39131708
