24/12/2024

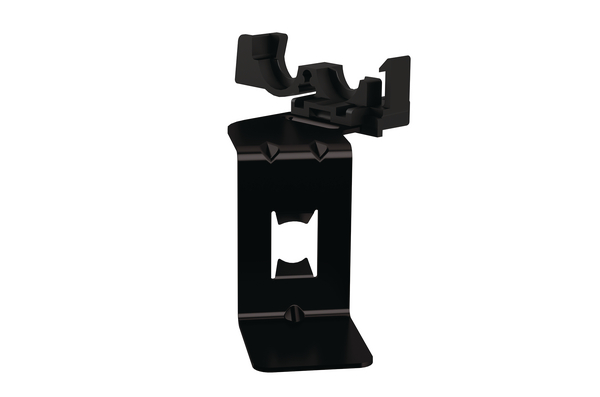

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 800pcs.
Art.-No. 133-03395 | CDC6B90AOS8AM8-PP-BK |  Details

Multiple configurations to mount to a variety of surfaces.

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method screwable
    Key product features for convoluted tubes or with rib
    Material Polypropylene (PP)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CDC6B90AOS8AM8-PP-BK
    Pack Cont. 800pcs.
    Package Content packed in carton
    Type CDC6B90AOS8AM8
    Attach to Ø 6
    Bundle Diameter max (metric) 6.0mm
    Bundle ∅ 6.0mm
    Diameter (D) 8.0mm
    Height (H) 66.5mm
    Length (L) 55.1mm
    Offset Length 13.7mm
    Stud ∅ M8"
    Stud ∅ M8
    Width (W) 59.2mm
    for Hole ∅ (FH) 8.8 mm
    ∅ (D2) 12.2mm
    ∅ D 0.31"
    ∅ D2 0.48"
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026594743
    Packaging 3 - Height (m) 0.352m
    Packaging 3 - Length (m) 0.572m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.349m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
