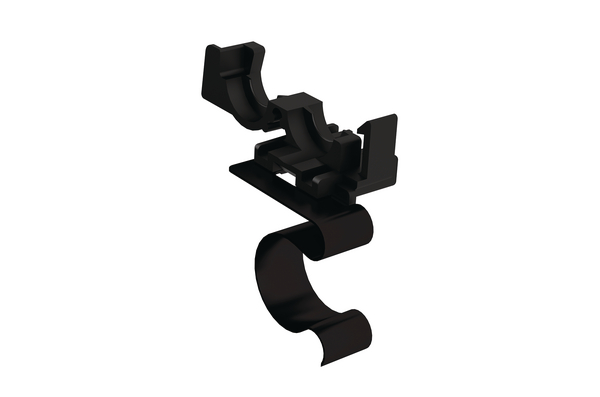

Corrugated tube clip with pipe/tube holder, black, 2000pcs.
Art.-No. 133-03490 | CDC6BC16-PP-BK |

Copied
Conduit clamp is releasable to allow for maintenance.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Fixation Method Bundling Clip
    Key product features for convoluted tubes or with rib
    Material Polypropylene (PP)
    PART DESCRIPTION CDC6BC16-PP-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Type CDC6BC16
    ⌀ (D2) 12.2mm
    ⌀ D 0.31"
    ⌀ D2 0.48"
    Attach to ⌀ 6
    Bundle ⌀ 16.0mm
    Bundle Diameter max (metric) 16.0mm
    Diameter (D) 8.0mm
    Height (H) 56.9mm
    Length (L) 34.9mm
    Offset Length 8.0mm
    Width (W) 22.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions.
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026595641
    Packaging 3 - Height (m) 0.35242499999999995m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
