22/02/2025

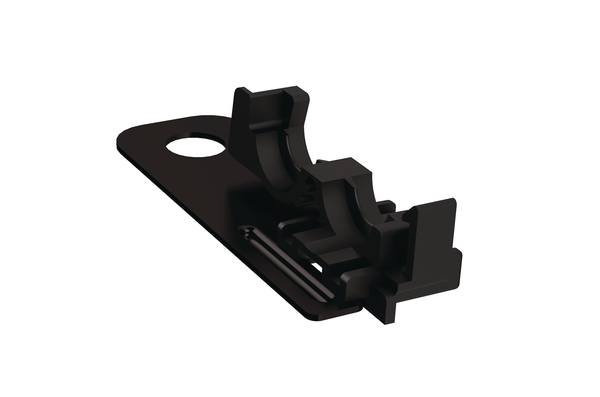

Corrugated tube clip for screw fixation/with pipe/tube holder, black, 500pcs.
Art.-No. 151-02648 | CDC6S40.5M8-PP-BK |  Details

Internal rib prevents movement or rattling.

    Package size
    Add to watchlist
    Downloads
    Colour Black (BK)
    Key product features for convoluted tubes or with rib
    Material Polypropylene (PP)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CDC6S40.5M8-PP-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type CDC6S40.5M8
    Attach to ⌀ 6
    Bundle ⌀ 6.0mm
    Bundle ⌀ min. 6.0mm
    for Hole ⌀ (FH) 8.8 mm
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<BR>ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    ReSource highlights HellermannTyton products that are made from reccled waste or from virgin materials with relatively lower carbon emissions.
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
