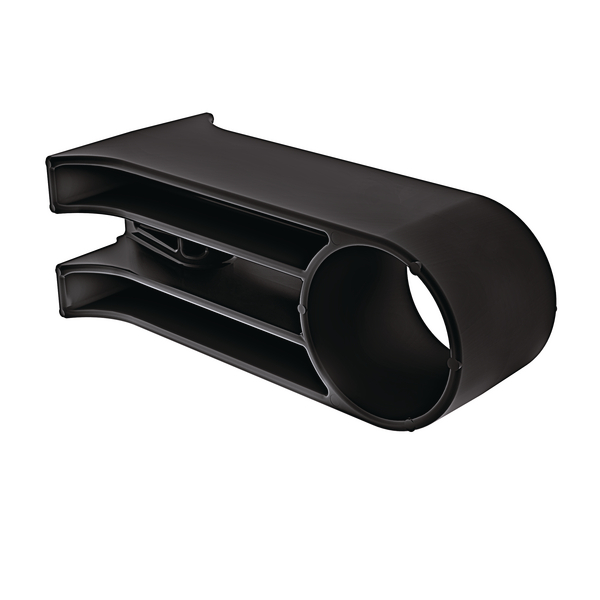

Corrugated tube clip, black, 150pcs.
Art.-No. 133-00285
| CGS2-PA66HIRHS-BK
|
Details
- Tubes are fixed a defined distance from the substructure
- Defined diameter for the wire entry
- Retainer is fixed in the hole with BHT-tie
More products in this product group:
| Application | This heavy duty fixing element can be used to guide tubes in a defined distance to the substructure. |
| Colour | Black (BK) |
| Key product features | for convoluted tubes or with rib |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | CGS2-PA66HIRHS-BK |
| Pack Cont. | 150pcs. |
| Package Content packed in | carton |
| Product Family | CGS1 for Convoluted Tubes |
| Product Group | Fixing Elements for BHT-Ties, for Distance Routing |
| Type | CGS2 |
| Variant | Mounts |
Download
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | YES |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +125 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US and Canada) | No |
| UV-Stabilised | No |
|
|
|
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026702025 |
| Packaging 1 - Height (m) | 0.032m |
| Packaging 1 - Length (m) | 0.083m |
| Packaging 1 - Qty | 1 |
| Packaging 1 - Type | pcs. |
| Packaging 1 - Volume (m³) | 0.00008m³ |
| Packaging 1 - Weight (kg) | 0.023kg |
| Packaging 1 - Width (m) | 0.029m |
| Packaging 3 - Height (m) | 0.212725m |
| Packaging 3 - Length (m) | 0.51435m |
| Packaging 3 - Qty | 150 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0347m³ |
| Packaging 3 - Weight (kg) | 4.07kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.209m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 3000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.161m³ |
| Packaging 4 - Weight (kg) | 102.4kg |
| Packaging 4 - Width (m) | 0.8m |
