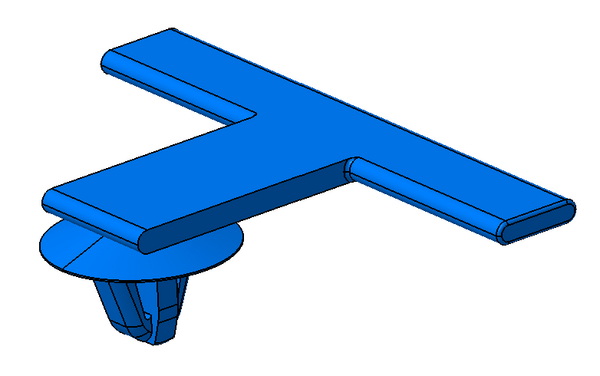

Bundling clip for hole (round), L=50.0mm, SO=20.0mm, black, 5000pcs.
Art.-No. 151-02601 | CH20D7-PA66-BK |  Details

Standoff bundling clip keeps bundle away from areas that could cause damage due to rubbing.

    • Easy to install without the need for a tool
    • Arrowhead simply locks into place
    • Disc adjusts tie for pressure from various directions and minimises access of dust, dirt and water
    • Bundles and cables routed at a set distance from punched holes
    Package size
    Add to watchlist
    Downloads Datasheet
    Application Originally designed for the Automotive industry, these clips offer simple and easy methods of securing cable hoses or pipes. They have many applications within a wide range of industries.
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION CH20D7-PA66-BK
    Pack Cont. 5000pcs.
    Package Content packed in bag
    Product Group Bundling Clips with Fir Tree, for Distance Routing
    Type CH20D7
    Bundling Bar Length 50.0mm
    Length (L) 50.0mm
    Length (L2) 20.0mm
    Offset Length 20.0mm
    for Hole ∅ (FH) 6.4 - 7.0 mm
    for Panel Thickness min - max 0.6 - 1.4 mm
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin GB
    GTIN-13 / EAN 4031026710402
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
