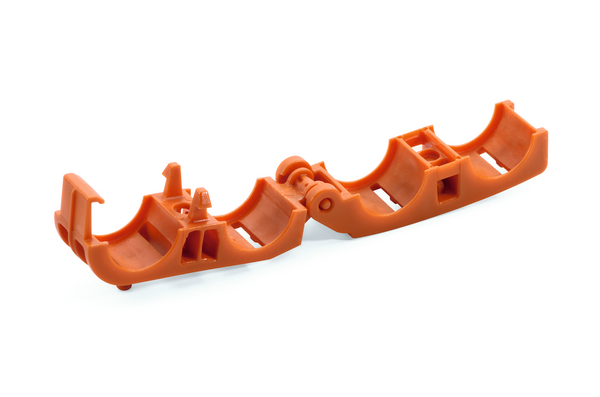

Cable clip for hole (round)/for stud, Dmin=19.5mm, Dmax=19.5mm, nom∅=19.5, ∅5.0 mm/M5
Art.-No. 151-03666 | CHP2W19.5NR-PA46-OG |  Details

Double clip in PA46 with anti-rotation pin recommended for corrugated tubing.

    • Ideal for fixing corrugated tubings
    • Easy installation thanks to the special closure
    • In PA6HS for temperatures up to 90°C and PA46 for temperature up to 150°C
    • For fixing on 5.0 mm studs with anti-rotation pin
    • For 2 cables or parallel routing
    • with a hinge lock and without a rubber insert (NR = no rubber)
    • The HV-Clips can also be manufactured with other material combinations or already available
    Show more
    Add to watchlist
    Downloads Datasheet
    Application These clips are designed for the installation of high voltage cables in the automotive sector or electric vehicles in general, but can be used for any application requiring parallel wiring. The sturdy clip fixes and guides cables and corrugated conduits in a stable and optimal way, keeping the wiring parallel even in the presence of strong vibrations. The HV-Clips are available as CLP, CMP and CHP parts. The "L" stands for lower performance (EPDM), the "M" for medium performance (heat resistant + AEM) and the "H" for high performance (PA46 + AEM). The HV clips can also be produced with other material combinations or are already available.
    Colour Orange (OG)
    Key product features vibration absorbing, sealed, for multiple routing
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION CHP2W19.5NR-PA46-OG
    Pack Cont. 250pcs.
    Package Content packed in box
    Product Family for multiparallel routing
    Product Group Fixing elements for tubes and harnesses
    Type CHP2W19.5NR
    Bundle Diameter Nom. (ND) 19.5
    Bundle Diameter max (metric) 19.5mm
    Bundle ∅ 19.5-19.5mm
    Bundle ∅ min. 19.5mm
    Height (H) 31.7mm
    Length (L) 75.1mm
    Stud ∅ 5.0 mm, M5
    Width (W) 20.4mm
    Country of Origin IT
    GTIN-13 / EAN 4031026685373
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
