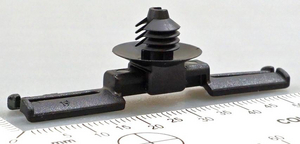

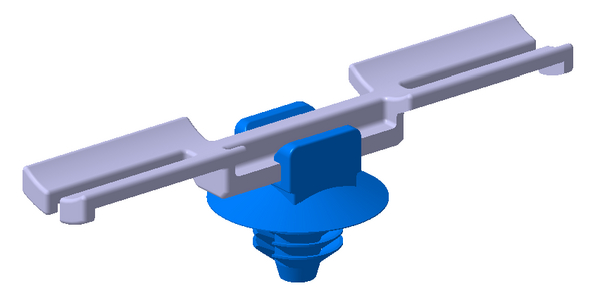

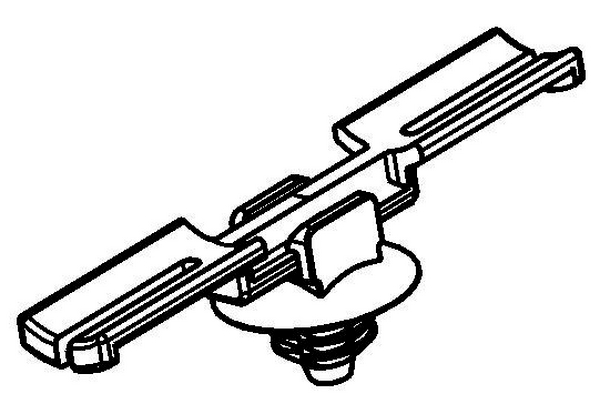

Bundling clip for hole (round), L=55.0mm, black, 500pcs.
Art.-No. 150-62698 | CLIP TCFT6-PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Anti rotation (Yes / No) NO
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CLIP TCFT6-PA66HIRHS-BK

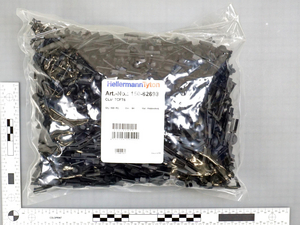

    Pack Cont. 500pcs.
    Package Content packed in bag
    Type CLIP TCFT6
    Wings on clip base (Yes / No) YES
    Bundling Bar Length 55.0mm
    Disc ∅ 18.0mm
    Fixing Hole Shape Circular
    Height (H) 16.0mm
    Length (L) 55.0mm
    Length (L2) 9.0mm
    Length of Fir Tree 7.5mm
    Panel Thickness max. 0.8 - 3.0mm
    Weight/Unit 0.001281kg
    for Hole ∅ (FH) 6.4 - 7.1 mm
    for Panel Thickness min - max 0.8 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin FR
    Customs Number 39269097
    GTIN-13 / EAN 4031026195100
    Packaging 1 - Height (m) 0.065m
    Packaging 1 - Length (m) 0.315m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00563m³
    Packaging 1 - Weight (kg) 0.654362kg
    Packaging 1 - Width (m) 0.275m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 13.69724kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.249m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.199m³
    Packaging 4 - Weight (kg) 185.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
