29/12/2024

Connector clip for hole (oval), black, 1000pcs.
Art.-No. 133-00533 | Connector Clip Oval II-PA66HIRHS-BK |  Details

Connector Clip for oval holes.

    • Due to its low installation height
    • can be used wherever space is
    • space is limited
    • Simple installation, no tools required
    • Secure fit of the EC as it locks in
    • locked in the drilled hole
    • Latching lug increases the trigger forces
    • additionally
    Show more
    Add to watchlist
    Downloads Datasheet
    Application This product has been specially developed for the automotive industry, but it can also be used wherever connectors need to be fixed with the appropriate connectors need to be fixed in place
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION Connector Clip Oval II-PA66HIRHS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Short Description Connector clip for oval holes, arrow head, high impact modified, heat stabilised, black

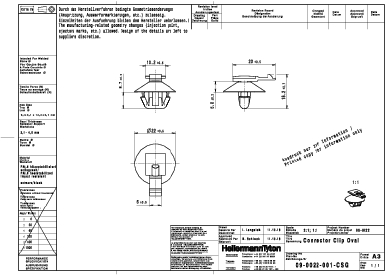

    Type Connector Clip Oval II
    Disc ∅ 22.0mm
    Height (H) 18.2mm
    Length (L) 22.0mm
    Weight/Unit 0.001041kg
    Width (W) 27.5mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 2.5 - 4.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026328829
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.36m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00562m³
    Packaging 1 - Weight (kg) 1.062815kg
    Packaging 1 - Width (m) 0.26m
    Packaging 3 - Height (m) 0.368m
    Packaging 3 - Length (m) 0.584m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.083m³
    Packaging 3 - Weight (kg) 11.44815kg
    Packaging 3 - Width (m) 0.386m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 158.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
