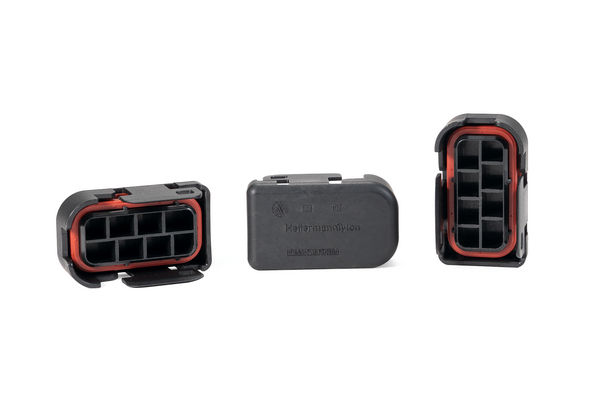

Protection cap for connectors, black, 2000
Art.-No. 151-02853 | CPDM-PA66/PA6FR-BK |  Details

Protection cap male.

    • General and transportation assurance
    • Protection of plug connection against splashing water, dust and dirt
    Add to watchlist
    Downloads
    Application In order to store or transport a connector safely, the connection pins must be protected from splashing water and dirt.
    Colour Black (BK)
    Material Polyamide 6.6 (PA66), Polyamide 6, flame retardant (PA6FR)
    PART DESCRIPTION CPDM-PA66/PA6FR-BK
    Pack Cont. 2000
    Package Content packed in bag
    Product Family Protection Cap D, male CTCS-series
    Product Group Connector Accessory Protection Caps, Group d
    Type CPDM
    Height (H) 17.0mm
    Length (L) 36.45mm
    Weight/Unit 0.004375kg
    Width (W) 21.2mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026620107
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 8.815411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 9.415411kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 246.96kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
