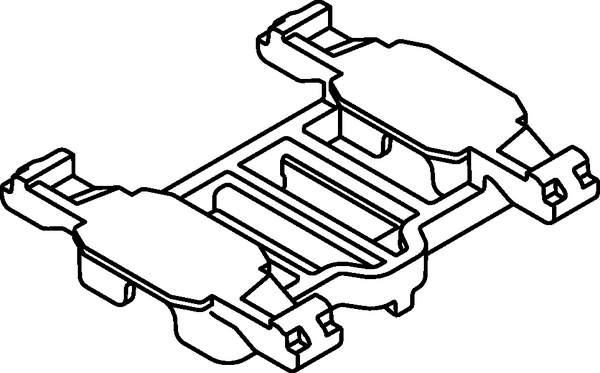

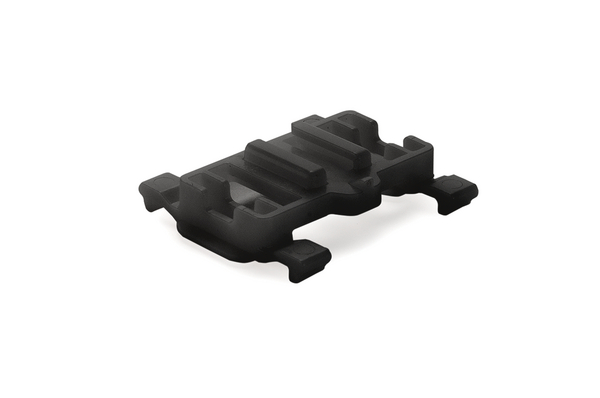

Connector clip for connector, black, 2000pcs.
Art.-No. 151-03521 | DBLCC11BRKT-PA66HIRHSUV-BK |  Details

    • Two position - 11mm USCAR connector clip bank provides exceptional versatility for mounting of connectors.
    • 11mm USCAR connector slot on opposite side provides options for incorporating many HellermannTyton connector clips with mounting features.
    • Each connector clip and connector slot is designed to meet USCAR EWCAP-005-11 clip slot specifications.
    • Meets installation and extraction requirements of SAE/USCAR-2.
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Description Connector clips feature various attachment point configurations to accommodate the many connectors on the market. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION DBLCC11BRKT-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Type DBLCC11BRKT
    Type of connection USCAR11
    Variant 11 mm USCAR Connector Clip

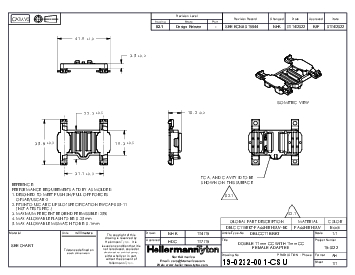

    Height (H) 10.2mm
    Height (H2) 19.3mm
    Length (L) 31.1mm
    Length (L2) 41.9mm
    Weight/Unit 0.01kg
    Width (W) 35.8mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026675312
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 20.61kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 433.2kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
