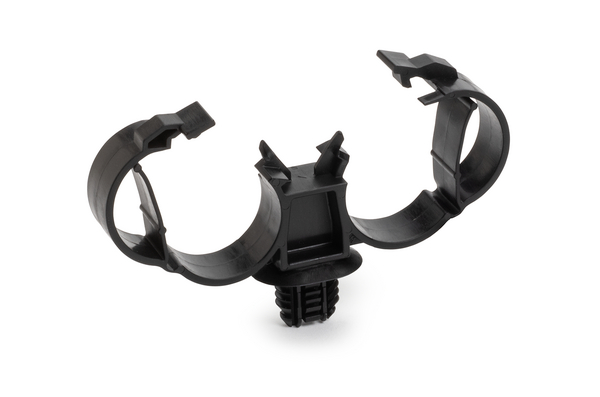

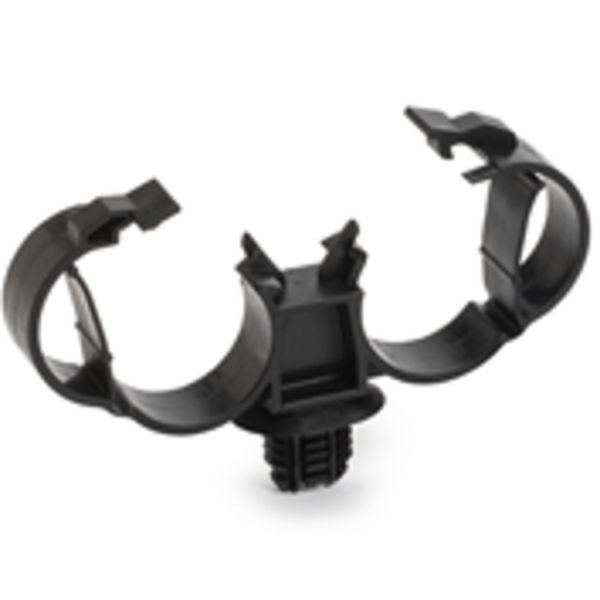

Cable clip, T=0.6 - 6.75mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=18.0mm, Dmax=22.0mm, nom∅=18.0 - 22.0 mm, nom∅2=18.0 - 22.0 mm
Art.-No. 151-03968 | DBLEClamp18-22FTOVAL-PA66HIRHSUV-BK |  Details

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Downloads Datasheet
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION DBLEClamp18-22FTOVAL-PA66HIRHSUV-BK
    Pack Cont. 600pcs.
    Package Content packed in carton
    Type DBLEClamp18-22FTOVAL
    Bundle Diameter Nom. (ND) 18.0 - 22.0 mm
    Bundle Diameter Nom. 2 (ND2) 18.0 - 22.0 mm
    Bundle Diameter max (metric) 22.0mm
    Bundle ∅ 18.0-22.0mm
    Bundle ∅ min. 18.0mm

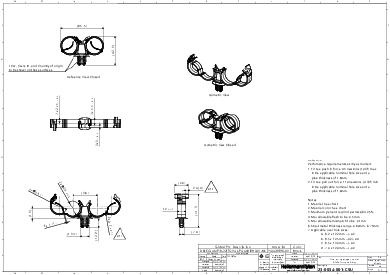

    Depth (D) 20.0mm
    Fixing Hole Shape Oval
    Height (H) 42.6mm
    Length (L) 65.5mm
    Length (L2) 38mm
    Panel Thickness max. 0.6 - 6.75mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026713977
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
