Cable clip with pipe/tube holder
Art.-No. 156-02596 | DTC10-13x6.5-S-PA66HIRHS-BK |  Details

DTCs for easy assembly of rotatable routed tubes and harnesses.

    • Fixing clip offers full 360° rotation
    • For routing of two different bundles
    • Simply clip on a wire or hose
    • Suitable for post-installation of bundles
    Add to watchlist
    Downloads
    Application These pipe clips interconnect two different bundles of goods, of various size and type. The mobility of the fixing tie provides even in difficult conditions, such as vibrations, a secure grip and protects the cables or bundles.
    Colour Black (BK)
    Fixation Method Omega Clip
    Key product features rotatable, for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION DTC10-13x6.5-S-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Family DTC - Double Tube Clip, rotatable 360°
    Product Group Fixing elements for tubes and harnesses
    Type DTC10-13x6.5-S

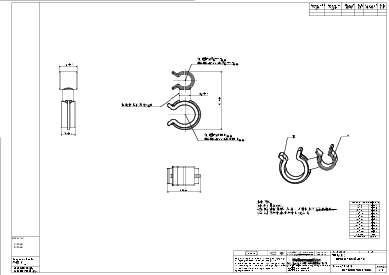

    Attach to Ø 6.5 - 7.5, 10.0 - 13.0
    Diameter (D) 13.0mm
    Height (H) 10mm
    Length (L) 31.4mm
    Width (W) 18.2mm
    ∅ (D2) 6.5mm
    Country of Origin CN
    GTIN-13 / EAN 4031026616636
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
