Cable clip for edge, T=1.0 - 3.0mm, Dmax=11.0mm
Art.-No. 151-03154 | EC1-3C15-PA66HIRHS-NA |  Details

fixing element for wires and hoses with edge clip 1-3mm.

    • "Simply push per hand onto a plastic edge
    • Integrated metal clamp holds clip firmly in place
    • Clamp consists of double tempered spring steel
    • Ideal for applications where holes or adhesives are not suitable"
    Add to watchlist
    Downloads Datasheet
    Application EdgeClips are used in the automotive industries and electrical industries and when it is impossible to drill holes or no other fixing points are available.
    Colour Natural (NA)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION EC1-3C15-PA66HIRHS-NA
    Pack Cont. 1000
    Package Content packed in bag
    Type EC1-3C15
    Attach to Ø 11.0
    Bundle Diameter max (metric) 11.0mm
    Bundle ∅ 11.0mm

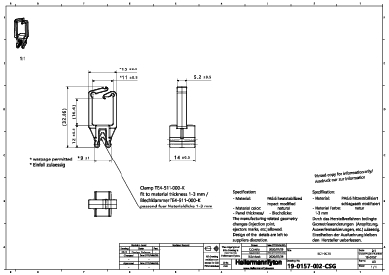

    Height (H) 32.86mm
    Length (L) 15mm
    Panel Thickness max. 1.0 - 3.0mm
    Weight/Unit 0.001822kg
    Width (W) 14mm
    for Panel Thickness min - max 1 - 3 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026635132
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 1.843815kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 9.819075kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 256.68kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
