28/12/2024

ECF90LOC5-9-PA66HIRHSUVR5/PA66HIRHSUV-BK
Art.-No. 156-02870 | ECF90LOC5-9-PA66HIRHSUVR5/PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Edge Clip
    Key product features rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION ECF90LOC5-9-PA66HIRHSUVR5/PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Type ECF90LOC5-9
    Bundle Diameter max (metric) 10.0mm
    Bundle ∅ 5.0-10.0mm
    Bundle ∅ min. 5.0mm

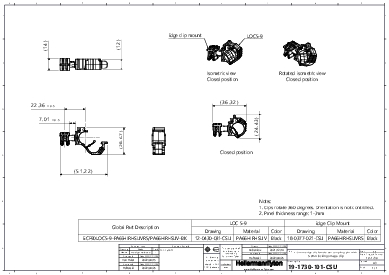

    Depth (D) 14.0mm
    Height (H) 51.22mm
    Height (H2) 36.32mm
    Length (L) 28.67mm
    Panel Thickness max. 1.0 - 3.0mm
    Width (W) 12.0mm
    for Panel Thickness min - max 1 - 3 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026635668
    Packaging 3 - Height (m) 0.210m
    Packaging 3 - Length (m) 0.606m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0482m³
    Packaging 3 - Weight (kg) 9.05kg
    Packaging 3 - Width (m) 0.379m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
