22/11/2024

Cable clip for hole (round), ∅4.0 mm
Art.-No. 154-00011 | FC1.2-PA66-GY |  Details

Clamp height is adjustable to accomodate the exact height of the ribbon.

    • Designed to retain flat ribbon cables - ideal for use in computer equipment, gaming machines and domestic appliances
    • Can be quickly and easily installed using these one-piece fixing clips
    • Offer the benefits of being easily releasable and re-usable for addition or replacement of cables
    Add to watchlist
    Downloads Datasheet
    Colour Grey (GY)
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION FC1.2-PA66-GY
    Pack Cont. 50pcs.
    Package Content packed in bag
    Type FC1.2
    For Cable Width Max (imperial) 1.2"
    For Cable Width max. 30.48mm

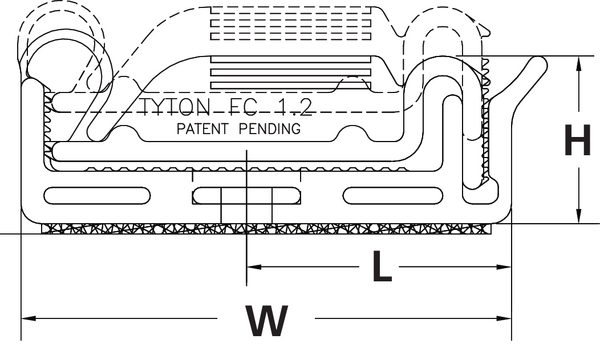

    Height (H) 12.95mm
    Length (L) 38.1mm
    Width (W) 63.5mm
    Width (W2) 19.05mm
    for Hole ∅ (FH) 4.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026715117
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
