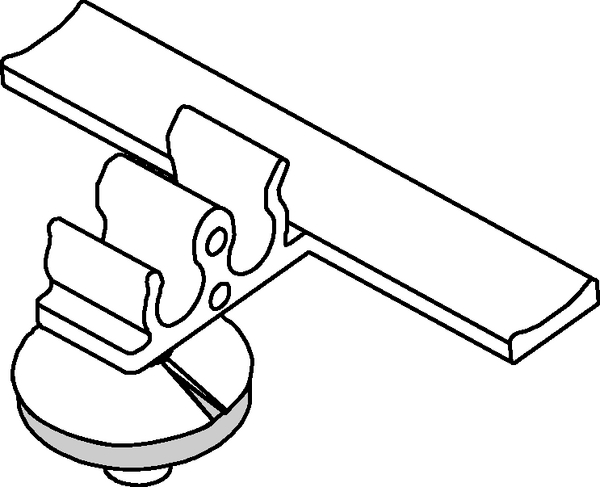

Bundling clip for hole (round), L=50.0mm, natural, 500pcs.
Art.-No. 151-01064 | FC20D6B1-MD-PA66-NA |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Natural (NA)
    Fixation Method Bundling Clip
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION FC20D6B1-MD-PA66-NA
    Pack Cont. 500pcs.
    Package Content packed in bag
    Product Group Bundling Clips for Parallel Routing of Pipes
    Type FC20D6B1-MD
    Attach to Ø 2 x 5.0
    Bundling Bar Length 50.0mm
    Height (H) 22mm
    Length (L) 50mm
    Panel Thickness max. 0.7 - 1.8mm
    Width (W) 27.4mm
    for Hole ∅ (FH) 6.3 - 7.1 mm, 6.35 mm
    for Panel Thickness min - max 0.7 - 1.8 mm
    Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
    Country of Origin KR
    GTIN-13 / EAN 4031026497983
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
