25/11/2024

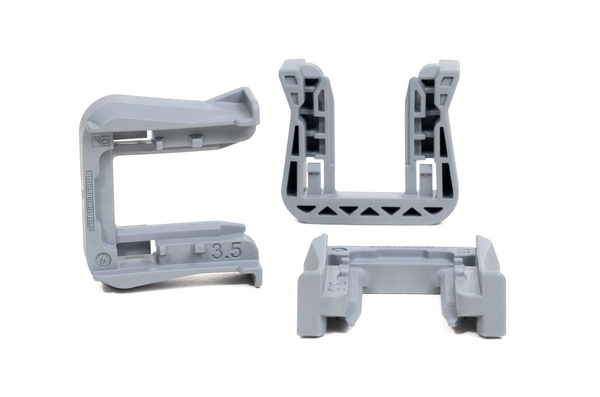

Fixing slider for connectors, T=3.5mm, grey, 2000pcs.
Art.-No. 151-02306 | FSB3.5-PBTGF30-GY |  Details

Fixing Slider (V0)

    • Color coding for panel thickness: red (2.5 mm), yellow (3.0 mm), grey (1.5 mm and 3.5mm), natural (1.0 mm and 1.5 mm)
    • Panel thickness is marked on the slider
    • Permanent fixation of the connectors in the mounting hole by using the slider
    • These parts are also available in V0 material (flame retardent) e.g. for public transport
    • Fixing slider fit for the Aptiv connector XS and SP series
    Show more
    Add to watchlist
    Downloads
    Application The slider is used to keep the plugs firmly and vibration-proof in place, even when movement acts on it.
    Colour Grey (GY)
    Material Polybutylene Terephthalate glass-fibre reinforced (PBTGF30)
    PART DESCRIPTION FSB3.5-PBTGF30-GY
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Product Family Fixing Slider B, 3.5 mm CTCS-series
    Product Group Connector Accessory Fixing Slider, Group B
    Type FSB3.5
    Height (H) 12.0mm
    Length (L) 31.9mm
    Panel Thickness max. 3.5mm
    Weight/Unit 0.00485kg
    Width (W) 36.0mm
    Width (W2) 14.1mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026605272
    Packaging 1 - Height (m) 0.8m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.192m³
    Packaging 1 - Weight (kg) 9.765411kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 10.365411kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 269.76kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
