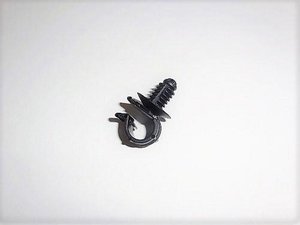

Cable clip for hole (oval)/with pipe/tube holder, T=0.7-6.5mm, ∅6.5 mm
Art.-No. 151-02235 | FT6.5OC7-9-PA66HIRHS-BK |  Details

    Package size
    Add to watchlist
    Downloads
    Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
    Colour Black (BK)
    Key product features for direct fixation, removable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION FT6.5OC7-9-PA66HIRHS-BK
    Pack Cont. 1500pcs.
    Package Content packed in bag
    Type FT6.5OC7-9
    Panel Thickness max. 0.7-6.5mm
    Weight/Unit 0.001238kg
    for Hole ∅ (FH) 6.5 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026603803
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 1500
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.886135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 8.19454kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 120000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 184.88kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
