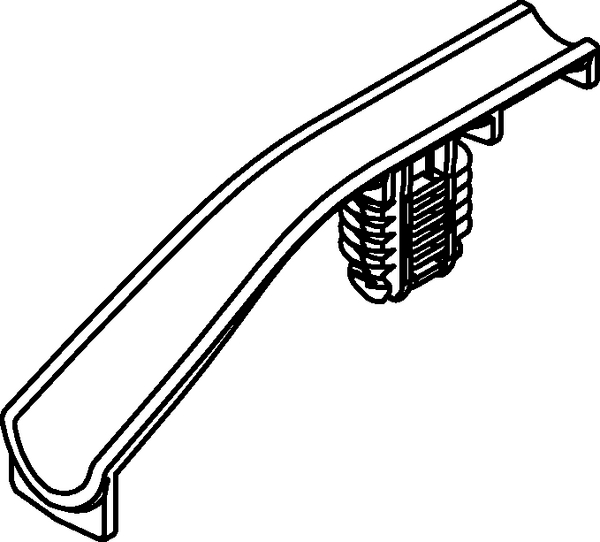

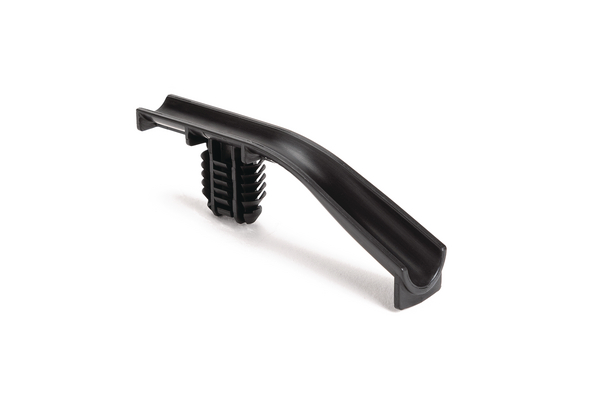

Bundling clip for hole (oval)/for hole (round), L=64.7mm, black, 4000pcs.
Art.-No. 133-02353 | FTOVALSTRNRLF-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION FTOVALSTRNRLF-PA66HIRHSUV-BK
    Pack Cont. 4000pcs.
    Package Content packed in carton
    Type FTOVALSTRNRLF
    Bundling Bar Length 64.7mm
    Fixing Hole Shape Oval
    Height (H) 22.6mm
    Hole Depth 0.60mm
    Hole Depth 6.75mm
    Length (L) 64.7mm
    Panel Thickness max. 0.6 - 6.75mm
    Weight/Unit 0.003kg
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026549880
    Packaging 1 - Height (m) 0.2m
    Packaging 1 - Length (m) 0.6m
    Packaging 1 - Qty 4000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.048m³
    Packaging 1 - Weight (kg) 12.000001kg
    Packaging 1 - Width (m) 0.4m
    Packaging 3 - Height (m) 0.22542499999999998m
    Packaging 3 - Length (m) 0.6095999999999999m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0545m³
    Packaging 3 - Weight (kg) 12.950001kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 60000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 215.25kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
