23/11/2024

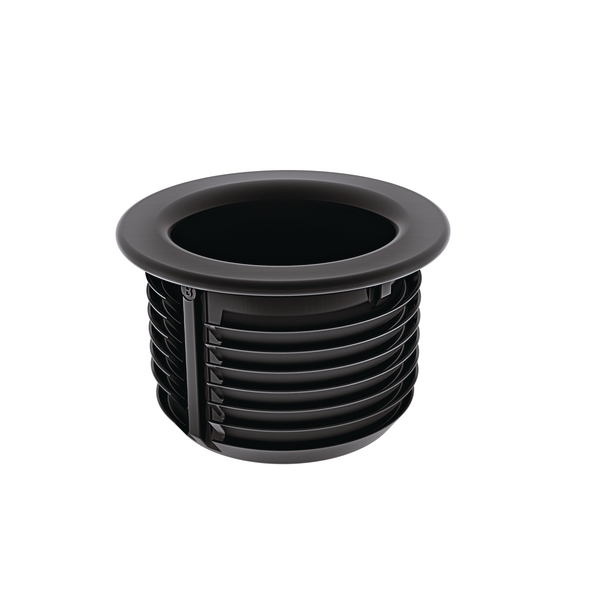

Cable grommet, ∅27.1 mm, black, 1400pcs.
Art.-No. 151-00709 | GMT1-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Cable ∅ max 17.53mm
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION GMT1-PA66HIRHSUV-BK
    Pack Cont. 1400pcs.
    Package Content packed in box
    Type GMT1
    Height (H) 21.5mm
    Weight/Unit 0.004143kg
    Width (W) 21.5mm
    for Hole ∅ (FH) 27.1 mm
    for Panel Thickness min - max 3.2 - 12.7 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    Customs Number 39269097
    Packaging 1 - Height (m) 0.21m
    Packaging 1 - Length (m) 0.5m
    Packaging 1 - Qty 1400
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0336m³
    Packaging 1 - Weight (kg) 5.913kg
    Packaging 1 - Width (m) 0.32m
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Qty 1400
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 6.5232kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 28000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 151.464kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121717
