P-clamp closed, Dmax=24.0mm, ∅5.2 mm, black, 1000pcs.
Art.-No. 211-60150 | H14P-PA66HS-BK |  Details

P-Clamps H1P - H18P in different dimensions.

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Add to watchlist
    Downloads Datasheet
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION H14P-PA66HS-BK
    Pack Cont. 1000pcs.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Type H14P
    Variant Closed

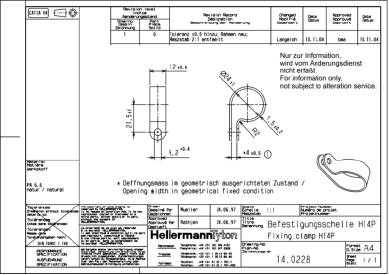

    Bundle Diameter max (metric) 24.0mm
    Bundle ∅ 24.0mm
    Fixing Hole Centres (F) 0.85"
    Fixing Hole Centres (F) 21.5mm
    Nominal ∅ 0.94"
    Nominal ∅ 24mm
    Radius (R) 2.0mm
    Radius (R) 0.08"
    Wall (WT) .05906"
    Wall (WT) 1.5mm
    Weight/Unit 0.002kg
    Width (W) 12.0mm
    for Hole ∅ (FH) 5.2 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026231679
    Packaging 1 - Height (m) 0.3m
    Packaging 1 - Length (m) 0.625m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.0825m³
    Packaging 1 - Weight (kg) 2.053478kg
    Packaging 1 - Width (m) 0.44m
    Packaging 2 - Type carton
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 4.706956kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 133.944kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
