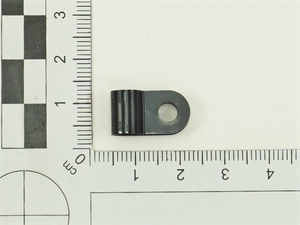

P-clamp closed, Dmax=5.0mm, ∅4.2 mm, black, 100pcs.
Art.-No. 211-60001 | H2P-PA66HS-BK |  Details

P-Clamps H1P - H18P in different dimensions.

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Package size
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Black (BK)
    Fixation Method screw-hole
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION H2P-PA66HS-BK

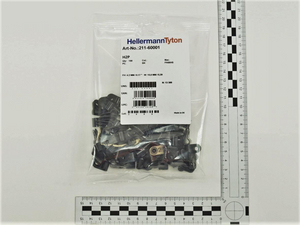

    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Short Description Plastic P-Clip PA66HS black 5 mm
    Type H2P
    Variant Closed
    Bundle Diameter max (metric) 5.0mm
    Bundle ∅ 5.0mm
    Fixing Hole Centres (F) 0.37"
    Fixing Hole Centres (F) 9.5mm
    Nominal ∅ 0.19"
    Nominal ∅ 5.0mm
    Radius (R) 1.0mm
    Radius (R) 0.04"
    Wall (WT) 0.039"
    Wall (WT) 1.0mm
    Weight/Unit 0.000349kg
    Width (W) 10.0mm
    for Hole ∅ (FH) 4.2 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5340-12-376-2980
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026240800
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.125m
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00119m³
    Packaging 1 - Weight (kg) 0.05967kg
    Packaging 1 - Width (m) 0.19m
    Packaging 3 - Height (m) 0.171m
    Packaging 3 - Length (m) 0.56m
    Packaging 3 - Qty 6000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0172m³
    Packaging 3 - Weight (kg) 3.8002kg
    Packaging 3 - Width (m) 0.18m
    Packaging 4 - Height (m) 1.17m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 288000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.123m³
    Packaging 4 - Weight (kg) 204.072kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
