19/11/2024

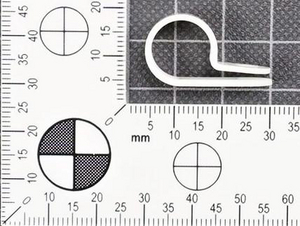

P-clamp closed, Dmax=12.5mm, ∅4.2 mm, natural, 1000pcs.
Art.-No. 211-60079 | H7P-PA66-NA |  Details

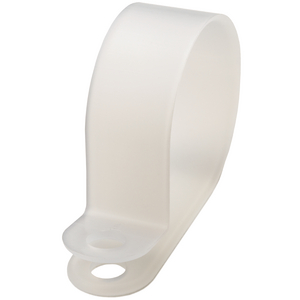

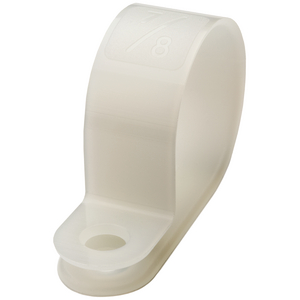

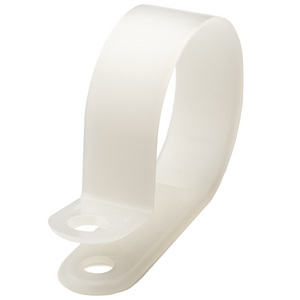

P-Clamps H1P - H18P in different dimensions.

    • Manufactured from Polyamide
    • Good temperature resistance and high strength
    • Wide range of sizes for every application
    • Can be used without cable ties
    Package size
    Add to watchlist
    Downloads CAD-Download Datasheet
    Application For permanent or semi-permanent cable fixings this range of plastic P-Clamps can be used in many industries. Their light weight makes them particularly suitable for use in areas such as aircraft and aerospace where minimising weight, but retaining a strong fixing, is vitally important.
    Colour Natural (NA)
    Fixation Method screw-hole
    Material Polyamide 6.6 (PA66)
    PART DESCRIPTION H7P-PA66-NA

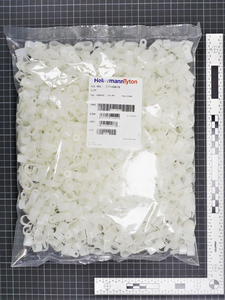

    Pack Cont. 1000pcs.
    Package Content packed in pcs.
    Product Family HP-Series
    Product Group Plastic P-Clamps
    Short Description Plastic P-Clip PA66 natural 12.5 mm
    Type H7P
    Variant Closed
    Bundle Diameter max (metric) 12.5mm
    Bundle ∅ 12.5mm
    Fixing Hole Centres (F) 0.55"
    Fixing Hole Centres (F) 14.0mm
    Nominal ∅ 0.5"
    Nominal ∅ 12.5mm
    Radius (R) 1.5mm
    Wall (WT) 0.047"
    Wall (WT) 1.2mm
    Weight/Unit 0.000768kg
    Width (W) 10.0mm
    for Hole ∅ (FH) 4.2 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 V2
    Hazardous Goods No
    Nato number 5340-12-157-6092
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Specifications EN 45545-2
    UV-Stabilised No
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026129440
    Packaging 1 - Height (m) 0.05m
    Packaging 1 - Length (m) 0.38m
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.00561m³
    Packaging 1 - Weight (kg) 0.79kg
    Packaging 1 - Width (m) 0.295m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 8000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 6.97kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.164m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 160000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.117m³
    Packaging 4 - Weight (kg) 160.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
