Connector clip for hole (oval), black, 500pcs.
Art.-No. 151-01464 | Halter CCSFT6.2x12.2-PA66HIRHS-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)

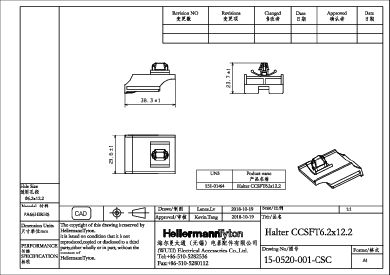

    PART DESCRIPTION Halter CCSFT6.2x12.2-PA66HIRHS-BK
    Pack Cont. 500pcs.
    Package Content packed in bag
    Type Halter CCSFT6.2x12.2
    Height (H) 23.7mm
    Length (L) 38.3mm
    Panel Thickness max. 1.5-3.0mm
    Width (W) 29.6mm
    for Hole ∅ (FH) 6.2 x 12.2 mm
    for Panel Thickness min - max 1.5 - 3 mm
    Country of Origin CN
    GTIN-13 / EAN 4031026540825
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
