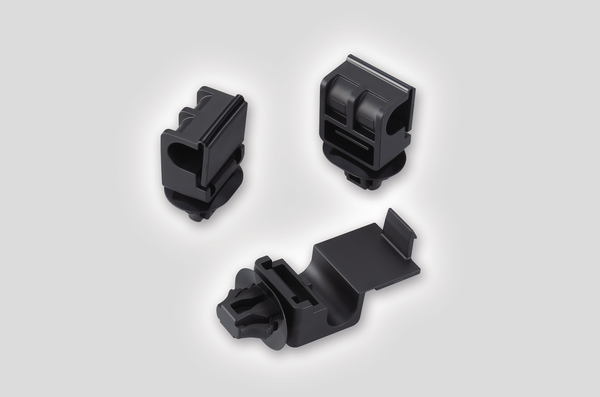

Cable clip, T=3.2mm, ∅7.0 x 12.0 mm, Dmax=8mm
Art.-No. 151-03183 | HC8PM712V-PA66HSW-BK |  Details

    • Fixing Elements for Tubes and Harnesses with Oval hole type head
    Add to watchlist
    Downloads Datasheet
    Application This Fixing Element is pressed into a hole by hand and locked into place with a hearable click. Cable bundles can be applicated afterwards.
    Colour Black (BK)
    Description A new solution for fixing harnesses
    Material Polyamide 6.6, heat and UV-resistant (PA66HSW)
    PART DESCRIPTION HC8PM712V-PA66HSW-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family HC8PM712V
    Product Group Fixing Elements for Tubes and Harnesses
    Type HC8PM712V
    Bundle Diameter max (metric) 8mm
    Bundle ∅ 8mm
    Length (L) 47mm
    Panel Thickness max. 3.2mm
    Width (W) 21mm
    for Hole ∅ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 1.2 - 3.2 mm
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387121681
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
