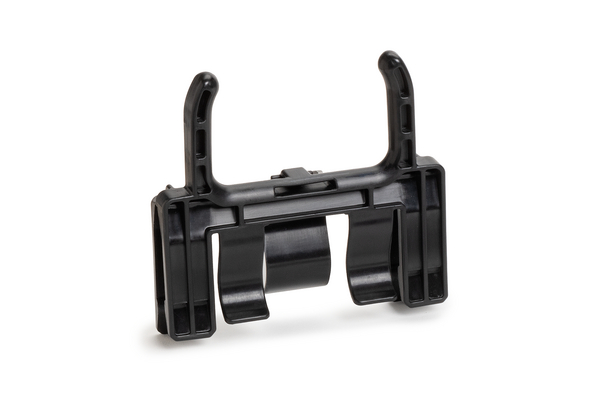

IBBCLPSLR1-PA66HIRHSUV-BK
Art.-No. 151-04320 | IBBCLPSLR1-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Edge Clip
    For Ties T18 - T50
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION IBBCLPSLR1-PA66HIRHSUV-BK
    Pack Cont. 250pcs.
    Package Content packed in carton
    Type IBBCLPSLR1
    Bundle Diameter max (metric) 50.8mm
    Bundle ∅ 48.76-50.8mm
    Bundle ∅ min. 48.76mm

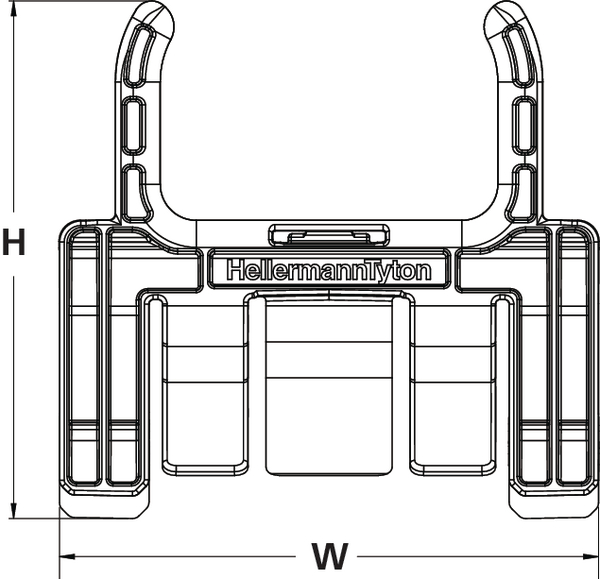

    Height (H) 115.0mm
    Height (H2) 66.3mm
    Length (L) 21.0mm
    Length (L2) 12.2mm
    Panel Thickness max. 3.3 - 12.7mm
    Strap Width max. (G) 0.18"
    Strap Width max. (G) 4.6mm
    Width (W) 119.8mm
    Width (W2) 75.0mm
    for Panel Thickness min - max 3.3 - 12.7 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026749709
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
