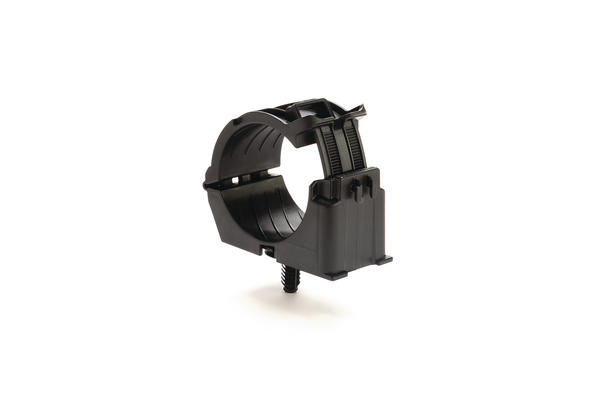

Cable clip, T=0.6 - 9.0mm, ∅6.5 mm, Dmin=36.01mm, Dmax=50.8mm, black, 25pcs.
Art.-No. 156-02709
| IRCDFT6.5LG-PA66HIRHSUV-BK
|
Details
- Building on the Ratchet P-Clamp family, the Center Mount Ratchet Clamp (CMRC) family offers fast and versatile installation of lines, hoses and cables
- Designed for applications where space is limited or when a staggered mounting option is not ideal
- Depending on the variant, the CMRC can be screwed on with an M6/M8/M10 screw or attached to an M8 threaded bolt
- The variants for bolt attachment enable time-saving installation with a reliable hold
![](https://www.hellermanntyton.com/shared/speclogos/99595_All_Languages.jpg)
![](https://www.hellermanntyton.com/shared/speclogos/33029_All_Languages.jpg)
More products in this product group:
Application | The Inline Ratchet Clamp family is a perfect fit when facing space constraints or where offset mounting options are not ideal. Easily twists onto existing threaded rods, eliminating the need for additional hardware. The robust design and durable materials make it ideal for heavy duty applications, both in- and outdoors. The one-piece adjustable clamp can be closed by hand to the desired diameter. The release feature provides easy and nondestructive removal of cables simply by using a flat-head screwdriver. This allows the clamp to be reused without removing or replacing any bolts or screws. |
Colour | Black (BK) |
Fixation Method | Fir tree for round holes |
Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
PART DESCRIPTION | IRCDFT6.5LG-PA66HIRHSUV-BK |
Pack Cont. | 25pcs. |
Package Content packed in | bag |
Product Family | In-Line Ratchet P-Clamp, D-Series |
Product Group | Fixing elements with fir tree for round holes |
Type | IRCDFT6.5LG |
CE Certification | No |
CSA Certified | No |
Flammability | UL 94 HB |
Operating Temperature | -40 °C to +105 °C |
Plenum Rating | AH-2 |
ROHS compliant | Yes |
Specifications |
![]() ![]() |
UL Listed (US and Canada) | Yes |
UL Listed (US and Canada) | Yes |
UL Recognized (US and Canada) | No |
UL Recognized (US and Canada) | No |
UL-File Number | E64139 |
UV-Stabilised | Yes |
