16/05/2024

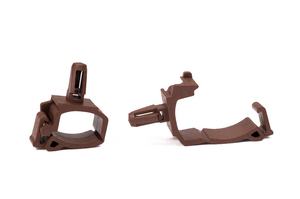

Cable clip, Ø6.4 mm, brown, 2000pcs.
Art.-No. 133-04835 | Kabelhalter XXL-PA66HIRHS-BN |  Details

    • reuseable fixing element
    • replacement of cable bundle possible in case of maintenance
    • assembly by hand without a need for a tool
    • Arrowhead snapped hearable by a click when applied in the hole
    • suitable for post-installation of cable bundles
    Show more
    Add to watchlist
    Colour Brown (BN)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION Kabelhalter XXL-PA66HIRHS-BN
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Product Family with locking function
    Product Group Fixing Element for Tubes and Pipes
    Type Kabelhalter XXL
    Height (H) 25.68mm
    Length (L) 20.63mm
    Weight/Unit 0.0015kg
    Width (W) 12.0mm
    for Hole ∅ (FH) 6.4 mm
    for Panel Thickness min - max - 2.5
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin DE
    Customs Number 39269097
    GTIN-13 / EAN 4031026614687
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.47m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.03842m³
    Packaging 1 - Weight (kg) 3.043597kg
    Packaging 1 - Width (m) 0.545m
    Packaging 3 - Height (m) 0.184m
    Packaging 3 - Length (m) 0.58m
    Packaging 3 - Qty 4000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0406m³
    Packaging 3 - Weight (kg) 6.687194kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.248m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 96000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.198m³
    Packaging 4 - Weight (kg) 181.512kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
