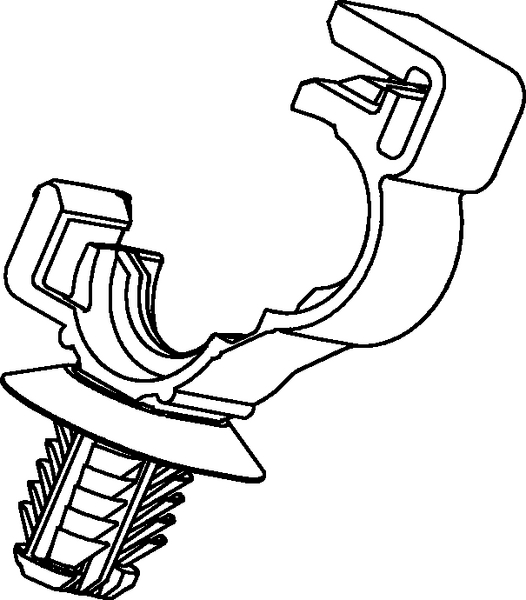

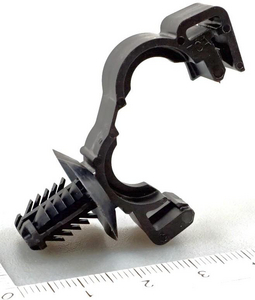

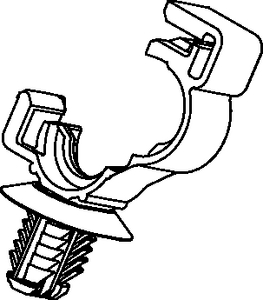

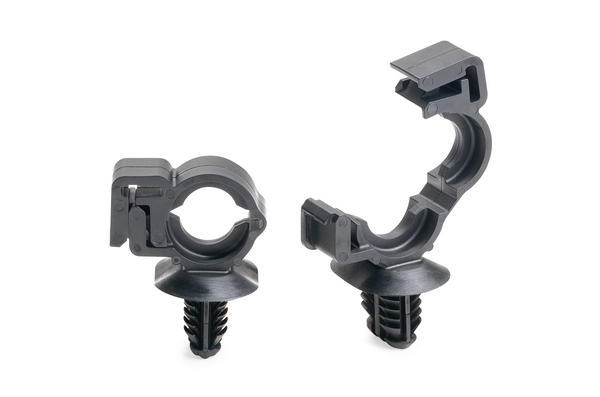

Corrugated tube clip for hole (oval)/with pipe/tube holder, black, 500pcs.
Art.-No. 151-01880
| LC9FTOVAL-PA66HIRHS-BK
|
Details
- CTC clamps for a variety of nominal diameters
- Fir tree foot part can be used for a variety of panel thicknesses
- Suitable for use within threaded holes
- Tube is guided accurately by clicking
- Axial slipping is prevented by the inside profile of the clamp
More products in this product group:
| Application | CTC clamps are used for example in the automotive, harness making, electrical industry and wherever corrugated tubing has to be quickly and firmly fixed. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Key product features | for convoluted tubes or with rib, removable, lockable |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | LC9FTOVAL-PA66HIRHS-BK |

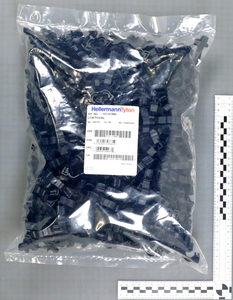

| Pack Cont. | 500pcs. |
| Package Content packed in | bag |
| Product Family | With fir tree for oval holes and cover |
| Product Group | Fixing elements for corrugated tubing |
| Short Description | Convoluted Tubing Clip, oval holes 6.2 x 12.2 mm/6.5 x 12.5 mm/6.5 x 13.0 mm/7.0 x 12.0 mm, fir tree, high impact modified, heat stabilised, black |
| Type | LC9FTOVAL |
| Attach to Ø | 14.4 |
| Bundle Diameter max (metric) | 9.8mm |
| Bundle ∅ | 9.8-9.8mm |
| Bundle ∅ min. | 9.8mm |
| Disc ∅ | 23.6 mmx 17.6mm |
| Height (H) | 37.7mm |
| Height (H2) | 13.2mm |
| Panel Thickness max. | 0.6 - 6.75mm |
| Weight/Unit | 0.002879kg |
| Width (W) | 10.0mm |
| for Hole ∅ (FH) | 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
Download
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026576619 |
| Packaging 1 - Height (m) | 0.11m |
| Packaging 1 - Length (m) | 0.24m |
| Packaging 1 - Qty | 500 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.00845m³ |
| Packaging 1 - Weight (kg) | 1.474007kg |
| Packaging 1 - Width (m) | 0.32m |
| Packaging 3 - Height (m) | 0.368m |
| Packaging 3 - Length (m) | 0.584m |
| Packaging 3 - Qty | 4000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.083m³ |
| Packaging 3 - Weight (kg) | 12.612056kg |
| Packaging 3 - Width (m) | 0.386m |
| Packaging 4 - Height (m) | 1.248m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.198m³ |
| Packaging 4 - Weight (kg) | 172.392kg |
| Packaging 4 - Width (m) | 0.8m |
