Cable clip for hole (round), ∅6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=10.0mm, Dmax=14.0mm
Art.-No. 151-01219 | LOC10-14FT6LG-PA46-GY |  Details

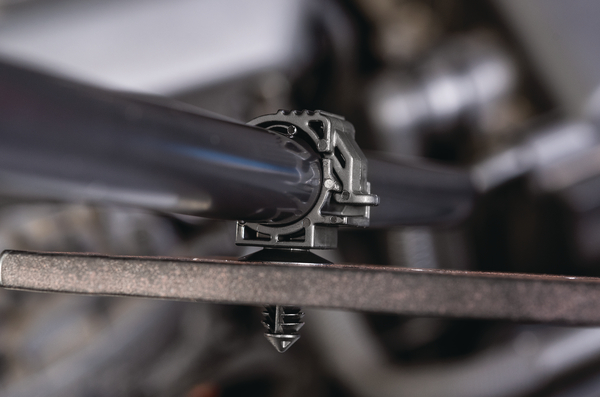

The 360 degree enclosure ensures the entire bundle is secure when being routed by the LOC clip.

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Downloads Datasheet
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Grey (GY)
    Fixation Method Fir tree for round holes
    Key product features lockable
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION LOC10-14FT6LG-PA46-GY
    Pack Cont. 2000pcs.
    Package Content packed in box
    Product Family LOC-Series
    Product Group Fixing Elements for Tubes and Pipes
    Short Description Harness Clip close, round hole 6.1 - 7.0 mm, fir tree, PA46, grey
    Type LOC10-14FT6LG
    Bundle Diameter max (metric) 14.0mm
    Bundle ∅ 10.0-14.0mm
    Bundle ∅ min. 10.0mm
    Depth (D) 12.0mm
    Height (H) 57.75mm
    Length (L) 34.92mm
    Width (W) 12.0mm
    for Hole ∅ (FH) 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
    for Panel Thickness min - max 0.6 - 8.3 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    Country of Origin MX
    GTIN-13 / EAN 4031026471624
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Weight (kg) 7.08kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Qty 80000
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121717
