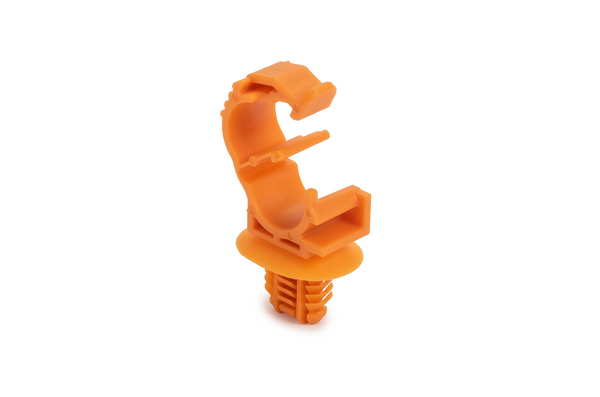

Cable clip for hole (oval)/with pipe/tube holder, T=0.6 - 6.75mm, ∅6.2 x 12.2 mm/6.5 x 12.5 mm, Dmin=10.0mm, Dmax=14.0mm
Art.-No. 151-03459 | LOC10-14FTOVAL-PA66HIRHS-OG |  Details

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Downloads Datasheet
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Orange (OG), High Voltage (HV)
    Fixation Method Fir Tree
    Key product features lockable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION LOC10-14FTOVAL-PA66HIRHS-OG
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Releasable Closure (Yes/No) Yes
    Type LOC10-14FTOVAL
    Bundle Diameter max (metric) 14.0mm
    Bundle ∅ 10.0-14.0mm
    Bundle ∅ min. 10.0mm
    Depth (D) 12.0mm
    Fixing Hole Shape Oval

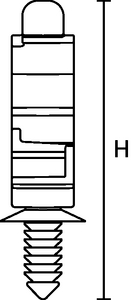

    Height (H) 55.9mm
    Length (L) 34.92mm
    Panel Thickness max. 0.6 - 6.75mm

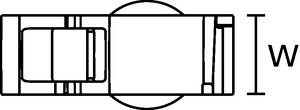

    Width (W) 12.0mm
    for Hole ∅ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026665863
    Packaging 3 - Height (m) 0.20002499999999998m
    Packaging 3 - Length (m) 0.51117499999999995m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0318m³
    Packaging 3 - Weight (kg) 3.3kg
    Packaging 3 - Width (m) 0.31115m
    Packaging 4 - Qty 40000
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
