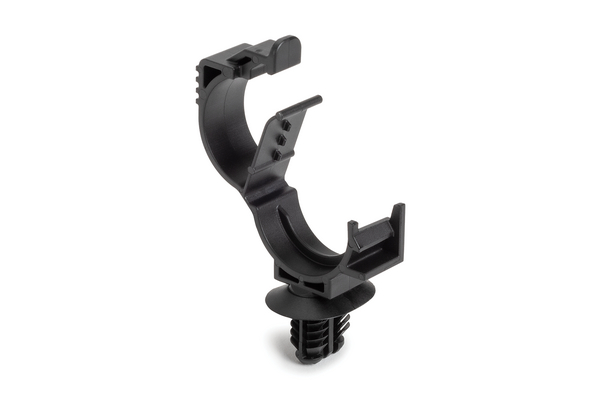

Cable clip, T=0.6 - 6.75mm, ∅6.2 - 12.2 mm/6.5 x 12.5 mm, Dmin=15.0mm, Dmax=19.0mm, nom∅=15.0 - 19.0 mm
Art.-No. 151-03389 | LOC15-19RFTOVALR-PA66HIRHSUV-BK |  Details

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Downloads Datasheet
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION LOC15-19RFTOVALR-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Type LOC15-19RFTOVALR
    Bundle Diameter Nom. (ND) 15.0 - 19.0 mm
    Bundle Diameter max (metric) 19.0mm
    Bundle ∅ 15.0-19.0mm
    Bundle ∅ min. 15.0mm

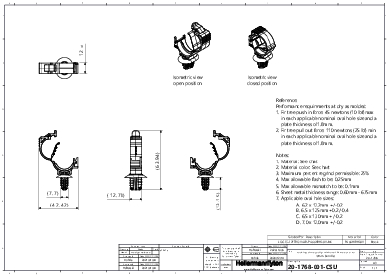

    Height (H) 63.94mm
    Length (L) 42.4mm
    Panel Thickness max. 0.6 - 6.75mm
    Width (W) 12.0mm
    for Hole ∅ (FH) 6.2 - 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6.8 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin US
    GTIN-13 / EAN 4031026658629
    Packaging 3 - Height (m) 0.2159m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.052m³
    Packaging 3 - Weight (kg) 3.8kg
    Packaging 3 - Width (m) 0.396875m
    Packaging 4 - Qty 30000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 31162900
