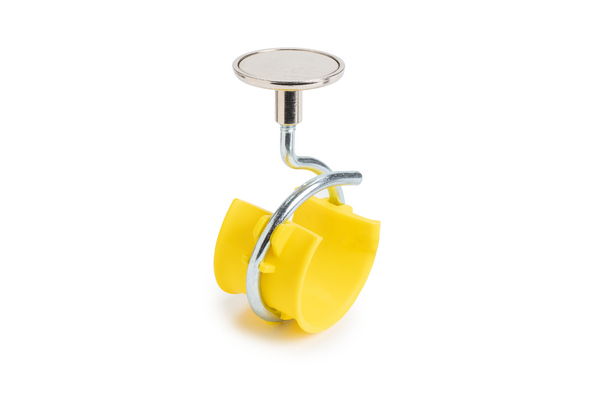

Cable clip, nom∅=44.5 mm
Art.-No. 151-03651 | MAGBR90L-S-NDFEB45/PP/ST-ML/YE |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Metal (ML), Yellow (YE)
    Fixation Method Magnet
    Magnetic pull strength (N) 400N
    Magnetic pull strength (kgf) 40.79
    Magnetic pull strength (lb/ft) 90lbf-ft
    Material Neodymium alloy 45M (NDFEB45M), Polypropylene (PP), Steel (ST)
    PART DESCRIPTION MAGBR90L-S-NDFEB45/PP/ST-ML/YE
    Pack Cont. 10pcs.
    Package Content packed in box
    Type MAGBR90L-S

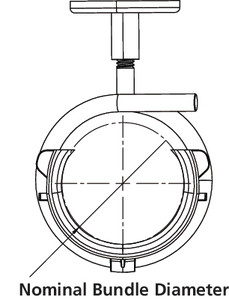

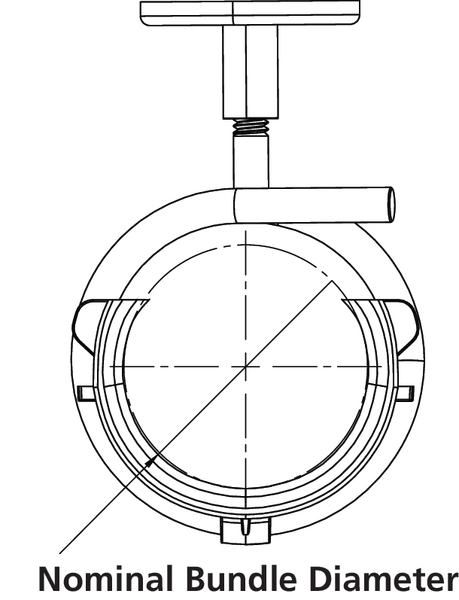

    Bundle Diameter Nom. (ND) 44.5 mm
    Diameter (D) 40.0mm

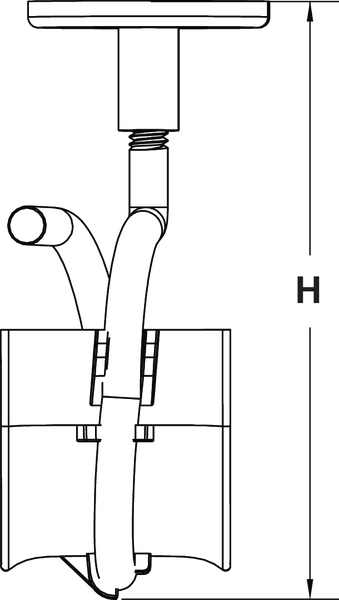

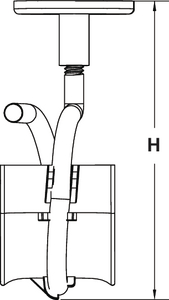

    Height (H) 99.1mm
    Rotation (°) 0°
    ∅ D 1.57"
    CE Certification No
    CSA Certified Yes
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-1
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026754413
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121703
