22/11/2024

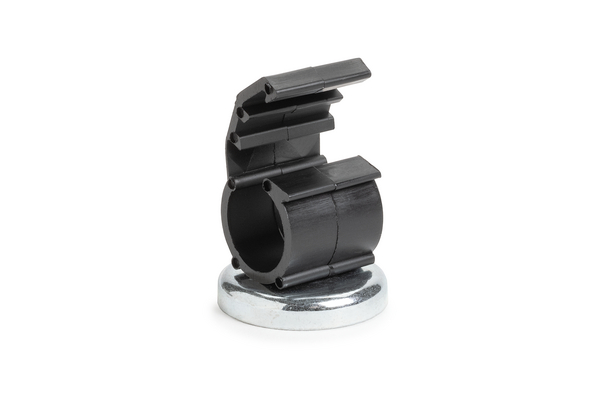

Cable clip, Dmax=12.7mm, nom∅=12.7 mm
Art.-No. 151-03648 | MAGCLMP15L-NDFEB45/POM/ST-BK |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Fixation Method Magnet
    Magnetic pull strength (N) 66N
    Magnetic pull strength (kgf) 6.73
    Magnetic pull strength (lb/ft) 15lbf-ft
    Material Neodymium alloy 45M (NDFEB45M), Polyacetal (POM), Steel (ST)
    PART DESCRIPTION MAGCLMP15L-NDFEB45/POM/ST-BK
    Pack Cont. 100pcs.
    Package Content packed in bag
    Type MAGCLMP15L
    Bundle Diameter Nom. (ND) 12.7 mm
    Bundle Diameter max (metric) 12.7mm
    Bundle ∅ 12.7mm

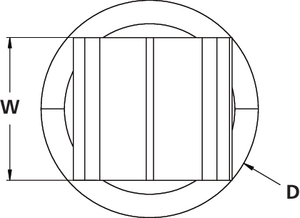

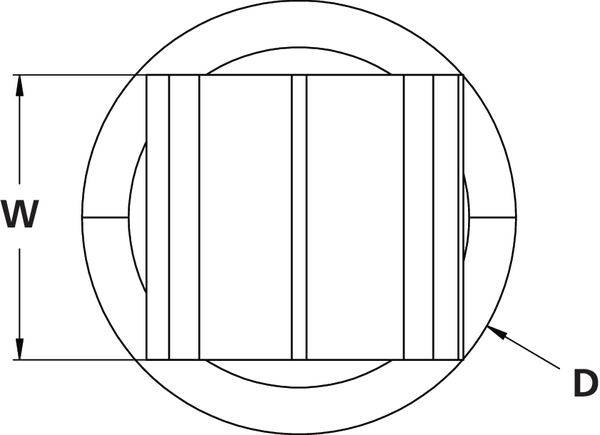

    Diameter (D) 23.2mm
    Height (H) 21.5mm
    Rotation (°) 360°
    Width (W) 15.2mm
    ∅ D 0.91"
    CE Certification No
    CSA Certified Yes
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) Yes
    UL Listed (US and Canada) Yes
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UL-File Number E64139
    UV-Stabilised No
    Country of Origin CN
    GTIN-13 / EAN 4031026754444
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121703
