29/12/2024

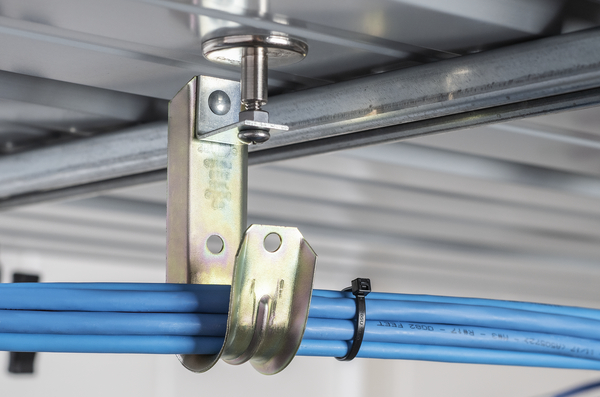

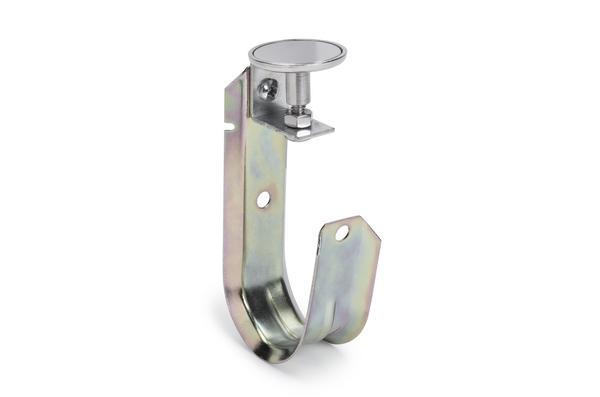

Cable clip, nom∅=50.8 mm
Art.-No. 151-04041 | MAGJH90TL-NDFEB45M/ST-ML |  Details

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Zinc-plated Metal (BV)
    Fixation Method Magnet
    Magnetic pull strength (N) 400N
    Magnetic pull strength (kgf) 40.79
    Magnetic pull strength (lb/ft) 90lbf-ft
    Material Neodymium alloy 45M (NDFEB45M), Steel (ST)
    PART DESCRIPTION MAGJH90TL-NDFEB45M/ST-ML
    Pack Cont. 10pcs.
    Package Content packed in box
    Type MAGJH90TL

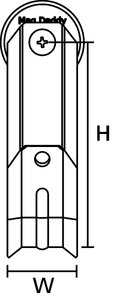

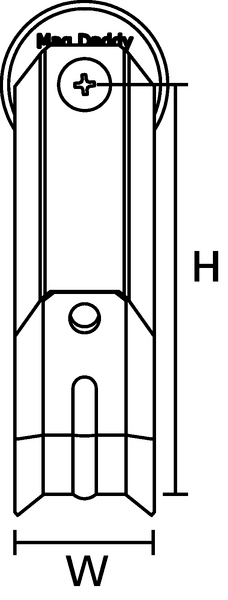

    Bundle Diameter Nom. (ND) 50.8 mm

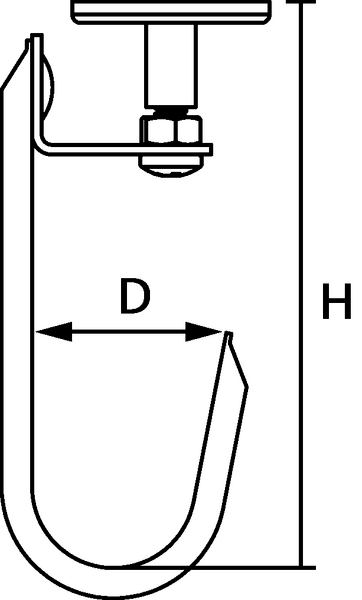

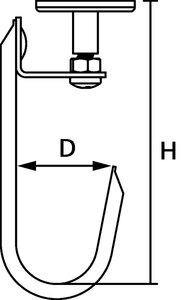

    Depth (D) 50.80mm
    Height (H) 122.34mm
    Rotation (°) 360°

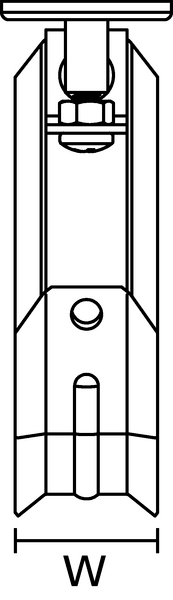

    Width (W) 33.53mm
    CE Certification No
    CSA Certified Yes
    Halogen-free Yes
    Operating Temperature -40 °C to +80 °C
    Plenum Rating AH-2
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised No
    Country of Origin US
    GTIN-13 / EAN 4031026730332
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121703
