26/12/2024

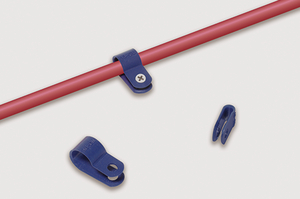

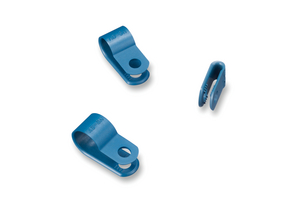

Nylon Clip for food industry, detectable
Art.-No. 151-03531 | MCAB6N-PA66MD-BU |  Details

    • Magnetic detectable – perfect for use with food and pharmaceutical grade detection equipment
    • Total metal dispersion provides consistent detectability, even for small ‘cut-off’ pieces
    • Greatly reduced risk of contamination within food products
    • Can support quality assurance in the production of food stuffs, for example HACCP
    Add to watchlist
    Downloads
    Application MCAB nylon clip are ideally suited for fixing wiring in position where food factory and pharmaceutical manufacturing site.
    Colour Blue (BU)
    Material Polyamide 6.6, metal detectable (PA66MD)
    Mounting Screw Type M4 Screw
    PART DESCRIPTION MCAB6N-PA66MD-BU
    Pack Cont. 100pcs.
    Package Content packed in bag
    Product Family MCAB-Series
    Product Group Nylon Clip for food industry, detectable
    Type MCAB6N
    Fixing Hole Centres (F) 12.7mm
    Wall (WT) 1.1mm
    Width (W) 9.5mm
    for Hole ∅ (FH) 4.3 mm
    Operating Temperature -40 °C to +85 °C
    ROHS compliant Yes
    Specifications
    Country of Origin JP
    GTIN-13 / EAN 4944387124088
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Show all
