Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom⌀=10.0 mm, nom⌀2=12.0 mm
Art.-No. 156-02335 | MOC10FMOC12M-PA66HIRHSUV-BK |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC10FMOC12M-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in pack
    Type MOC10FMOC12M
    Variant Clip to Clip
    Bundle ⌀ 9.5-11.5mm
    Bundle ⌀ 2 max. 13.8mm
    Bundle ⌀ 2 min. 10.5mm
    Bundle ⌀ max. 11.5mm
    Bundle ⌀ min. 9.5mm
    Bundle Diameter Nom. (ND) 10.0 mm
    Bundle Diameter Nom. 2 (ND2) 12.0 mm

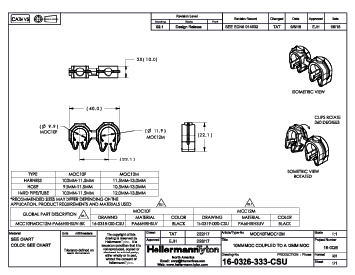

    Depth (D) 10.0mm
    Height (H) 22.1mm
    Length (L) 40.0mm
    Length (L2) 22.1mm
    Weight/Unit 0.01127kg
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026586038
    Packaging 1 - Type carton
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 23.15kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.194m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 40000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.146m³
    Packaging 4 - Weight (kg) 484.0kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
