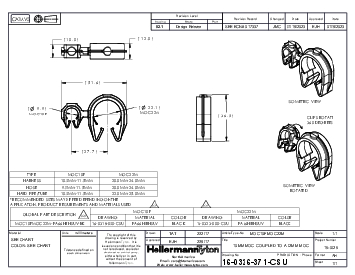

Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom∅=10.0 mm, nom∅2=22.0 mm
Art.-No. 156-02339 | MOC10FMOC22M-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC10FMOC22M-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in carton
    Type MOC10FMOC22M
    Variant Clip to Clip
    Bundle Diameter Nom. (ND) 10.0 mm
    Bundle Diameter Nom. 2 (ND2) 22.0 mm
    Bundle Diameter max (metric) 11.5mm
    Bundle ∅ 9.5-11.5mm
    Bundle ∅ 2 max. 25.0mm
    Bundle ∅ 2 min. 20.0mm
    Bundle ∅ min. 9.5mm
    Depth (D) 12.0mm
    Height (H) 36.5mm
    Height (H2) 36.5mm
    Length (L) 51.6mm
    Length (L2) 27.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026586076
    Packaging 1 - Weight (kg) 204.67kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
