23/12/2024

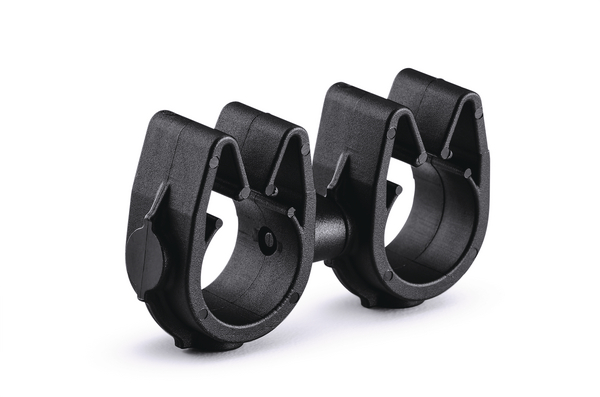

Cable clip with pipe/tube holder, Dmin=10.5mm, Dmax=13.8mm, nom∅=12.0 mm, nom∅2=12.0 mm
Art.-No. 156-02342 | MOC12FMOC12M-PA66HIRHSUV-BK |  Details

A rotatable dual routing clip that keeps two routings secured and separated.

    Package size
    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC12FMOC12M-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Type MOC12FMOC12M
    Variant Clip to Clip
    Bundle Diameter Nom. (ND) 12.0 mm
    Bundle Diameter Nom. 2 (ND2) 12.0 mm
    Bundle Diameter max (metric) 13.8mm
    Bundle ∅ 10.5-13.8mm
    Bundle ∅ 2 max. 13.8mm
    Bundle ∅ 2 min. 10.5mm
    Bundle ∅ min. 10.5mm

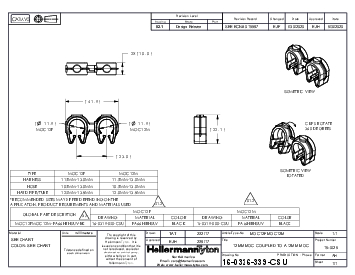

    Depth (D) 10.0mm
    Height (H) 22.1mm
    Length (L) 41.9mm
    Length (L2) 23.0mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026586113
    Packaging 1 - Weight (kg) 202.77kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 7.03kg
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121703
