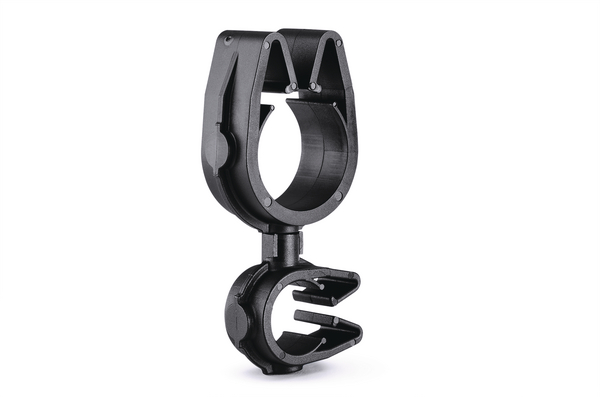

Cable clip with pipe/tube holder, Dmin=10.5mm, Dmax=13.8mm, nom∅=12.0 mm, nom∅2=19.0 mm
Art.-No. 156-02088 | MOC12FMOC19M180-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC12FMOC19M180-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Type MOC12FMOC19M180
    Variant Clip to Clip Transverse
    Bundle Diameter Nom. (ND) 12.0 mm
    Bundle Diameter Nom. 2 (ND2) 19.0 mm
    Bundle Diameter max (metric) 13.8mm
    Bundle ∅ 10.5-13.8mm
    Bundle ∅ 2 max. 21.8mm
    Bundle ∅ 2 min. 17.0mm
    Bundle ∅ min. 10.5mm
    Depth (D) 12.0mm
    Height (H) 27.3mm
    Height (H2) 27.3mm
    Length (L) 55.75mm
    Length (L2) 27.2mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026716909
    Packaging 1 - Weight (kg) 204.5kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
