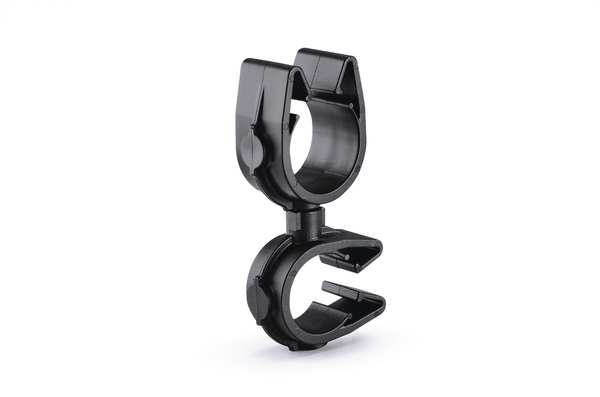

Cable clip with pipe/tube holder, Dmin=13.0mm, Dmax=15.8mm, nom∅=14.0 mm, nom∅2=16.0 mm
Art.-No. 156-02111 | MOC14FMOC16M180-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC14FMOC16M180-PA66HIRHSUV-BK
    Pack Cont. 1000
    Package Content packed in carton
    Type MOC14FMOC16M180
    Variant Clip to Clip Transverse
    Bundle Diameter Nom. (ND) 14.0 mm
    Bundle Diameter Nom. 2 (ND2) 16.0 mm
    Bundle Diameter max (metric) 15.8mm
    Bundle ∅ 13.0-15.8mm
    Bundle ∅ 2 max. 18.3mm
    Bundle ∅ 2 min. 14.0mm
    Bundle ∅ min. 13.0mm
    Depth (D) 12.0mm
    Height (H) 23.8mm
    Height (H2) 22.9mm
    Length (L) 50.92mm
    Length (L2) 26.1mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026716794
    Packaging 1 - Weight (kg) 203.49kg
    Packaging 3 - Height (m) 0.2047875m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 1000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 4.48kg
    Packaging 3 - Width (m) 0.314325m
    Packaging 4 - Qty 40000
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
