26/12/2024

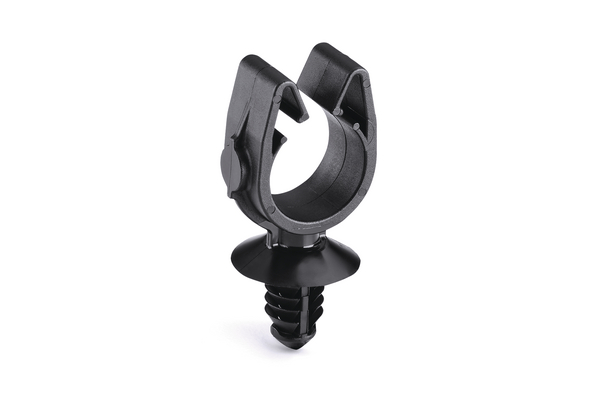

Cable clip for hole (round), T=0.6 - 5.5mm, ∅6.1 - 6.9 mm/6.35 mm (hexagonal), Dmin=14.0mm, Dmax=18.3mm, nom∅=16.0 mm
Art.-No. 151-01778 | MOC16FT6.5-PA66HIRHSUV-BK |  Details

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist
    Downloads Datasheet
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Key product features removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC16FT6.5-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Type MOC16FT6.5
    Bundle Diameter Nom. (ND) 16.0 mm
    Bundle Diameter max (metric) 18.3mm
    Bundle ∅ 14.0-18.3mm
    Bundle ∅ min. 14.0mm
    Depth (D) 12.0mm
    Fixing Hole Shape Circular
    Height (H) 41.3mm
    Length (L) 22.9mm
    Panel Thickness max. 0.6 - 5.5mm
    for Hole ∅ (FH) 6.1 - 6.9 mm, 6.35 mm (hexagonal)
    for Panel Thickness min - max 0.6 - 5.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026572277
    Packaging 1 - Weight (kg) 202.01kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
