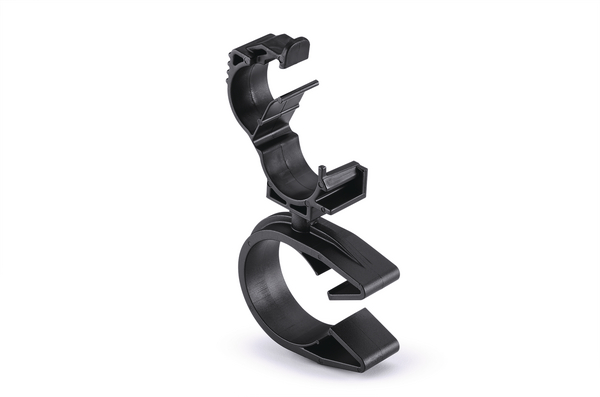

Cable clip with pipe/tube holder, Dmin=23.0mm, Dmax=29.0mm, nom⌀=26.0 mm, nom⌀2=10.0 mm - 14.0 mm
Art.-No. 156-01873 | MOC26FLOC10-14-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC26FLOC10-14-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in pack
    Type MOC26FLOC10-14
    Variant Clip to Clamp
    Bundle ⌀ 23.0-29.0mm
    Bundle ⌀ 2 max. 14.0mm
    Bundle ⌀ 2 min. 10.0mm
    Bundle ⌀ max. 29.0mm
    Bundle ⌀ min. 23.0mm
    Bundle Diameter Nom. (ND) 26.0 mm
    Bundle Diameter Nom. 2 (ND2) 10.0 mm - 14.0 mm
    Depth (D) 12.0mm
    Height (H) 41.0mm
    Height (H2) 41.0mm
    Length (L) 63.20mm
    Length (L2) 34.7mm
    UV-Stabilised Yes
    Weight/Unit 0.006555kg
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026715667
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 207.04kg
    Packaging 3 - Height (m) 0.42069m
    Packaging 3 - Length (m) 0.606425m
    Packaging 3 - Qty 1000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.1021m³
    Packaging 3 - Weight (kg) 6.9kg
    Packaging 3 - Width (m) 0.40005m
    Packaging 4 - Qty 18000
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
