Cable clip with pipe/tube holder, Dmin=23.0mm, Dmax=29.0mm, nom⌀=26.0 mm, nom⌀2=26.0 mm
Art.-No. 156-02369 | MOC26FMOC26M-PA66HIRHSUV-BK |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    • Patented retention design features inverted retaining legs, narrow opening and circular retainer to prevent inadvertent disengagement.
    • Controlled flex and angled entry promote easy installation.
    • Independent rotation allows for adjustable routing orientation.
    Add to watchlist
    Downloads
    Application Rotatable dual routing clips keep two routings secured and separated. A
    swivel coupler allows them to rotate independently of each other.
    Colour Black (BK)
    Key product features for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC26FMOC26M-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in pack
    Type MOC26FMOC26M
    Variant Clip to Clip
    Attach to ⌀ 23.0 - 29.0
    Bundle ⌀ 23.0-29.0mm
    Bundle ⌀ 2 max. 29.0mm
    Bundle ⌀ 2 min. 23.0mm
    Bundle ⌀ max. 29.0mm
    Bundle ⌀ min. 23.0mm
    Bundle Diameter Nom. (ND) 26.0 mm
    Bundle Diameter Nom. 2 (ND2) 26.0 mm

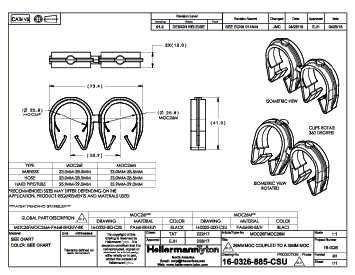

    Depth (D) 12.0mm
    Height (H) 41.0mm
    Height (H2) 41.0mm
    Length (L) 73.4mm
    Length (L2) 38.9mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026586380
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 207.75kg
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0506m³
    Packaging 3 - Weight (kg) 12.2kg
    Packaging 3 - Width (m) 0.39688m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
