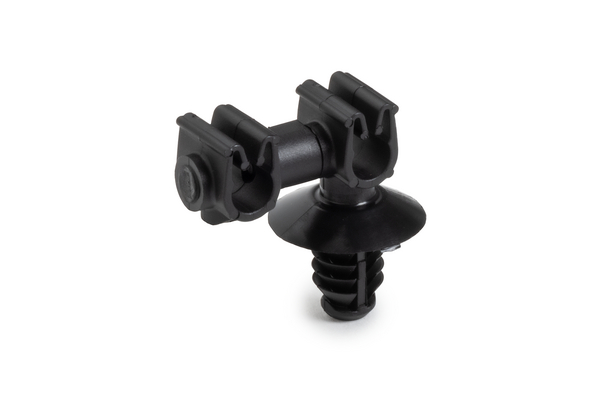

MOC5FMOC5FT6.5M-PA66HIRHSUV-BK
Art.-No. 156-03301 | MOC5FMOC5FT6.5M-PA66HIRHSUV-BK | Details

Add to watchlist

Downloads Datasheet

Base Data

Colour	Black (BK)
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	MOC5FMOC5FT6.5M-PA66HIRHSUV-BK
Pack Cont.	2000Bag
Package Content packed in	carton
Type	MOC5FMOC5FT6.5M

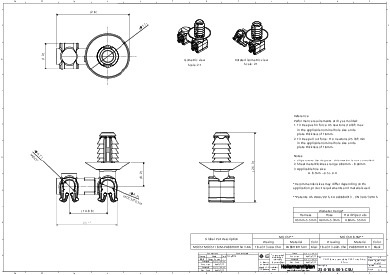

Product Dimensions

Bundle Diameter Nom. (ND)	5 mm
Bundle Diameter Nom. 2 (ND2)	5 mm
Depth (D)	10.0mm
Height (H)	26.3mm
Length (L)	28.0mm
Length (L2)	14.7mm
Panel Thickness max.	0.60 mm - 6.00mm
for Hole ∅ (FH)	6.35 mm (hexagonal), 6.5 mm (+/- 0.4 mm)

Downloads

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US and Canada)	No
UL Recognized (US and Canada)	No
UL Recognized (US and Canada)	No
UV-Stabilised	Yes

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026735405
Packaging 3 - Height (m)	0.2047875m
Packaging 3 - Length (m)	0.5159375m
Packaging 3 - Qty	2000
Packaging 3 - Type	carton
Packaging 3 - Volume (m³)	0.0332m³
Packaging 3 - Weight (kg)	2.71kg
Packaging 3 - Width (m)	0.314325m
Packaging 4 - Qty	80000

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
