13/11/2024

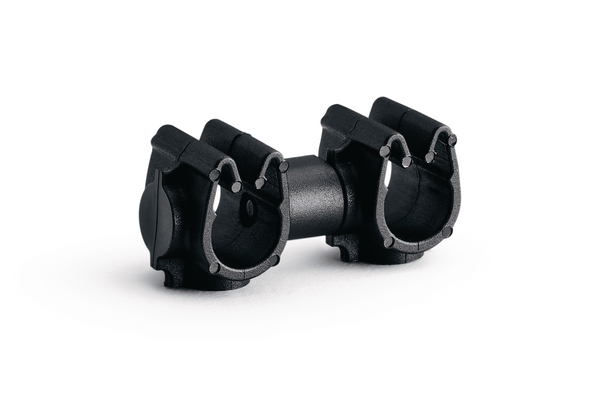

Cable clip with pipe/tube holder, Dmin=5.5mm, Dmax=6.8mm, nom∅=6.0 mm, nom∅2=7.0 mm
Art.-No. 156-02294 | MOC6FMOC7M-PA66HIRHSUV-BK |  Details

    Add to watchlist
    Downloads Datasheet
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC6FMOC7M-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in carton
    Type MOC6FMOC7M
    Variant Clip to Clip
    Bundle Diameter Nom. (ND) 6.0 mm
    Bundle Diameter Nom. 2 (ND2) 7.0 mm
    Bundle Diameter max (metric) 6.8mm
    Bundle ∅ 5.5-6.8mm
    Bundle ∅ 2 max. 8.0mm
    Bundle ∅ 2 min. 6.0mm
    Bundle ∅ min. 5.5mm

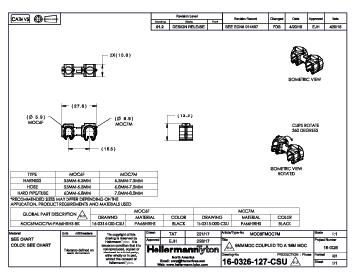

    Depth (D) 10.0mm
    Height (H) 13.4mm
    Length (L) 27.6mm
    Length (L2) 16.5mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026717319
    Packaging 1 - Weight (kg) 201.18kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
